Mega-Track Hanger Short

https://www.sktheatricaldraperies.com/web/image/product.template/150/image_1920?unique=c9b38b2
Price Ranges
$26.74 - $30.43
Full Bulk:
Item #104671

26.74 26.740000000000002 USD 26.74

0.00

  • Material
  • Finish
  • Weight
  • Kit

This combination does not exist.

1 yard(s)
meter(s)
Minimum Purchase Required: 1 Unit(s)
Product Specifications
Material: Steel - Aluminum
Weight: 1 lb
Kit: Gridlock half - track hanger - fasteners
see more... see less...

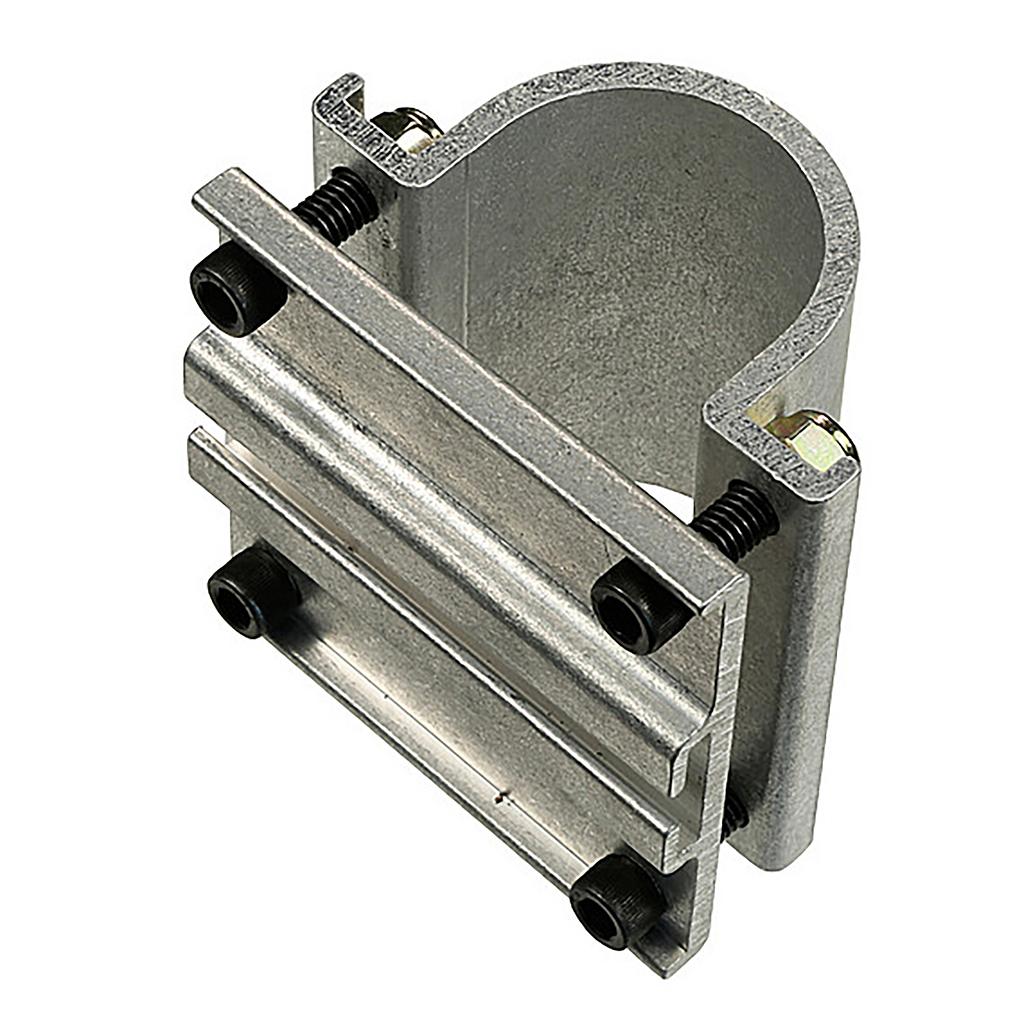

Mega-Track Hanger - Short

The Mega-Track Hanger makes it easy to hang 140 or 300 series track onto pipe grids, or from individual pipes. The Mega-Track Hanger Short hangs from the lower pipe of the grid and secures the track just 3/16 of an inch below the grid pipe.

The Mega-Track Hangers use a Mega-Gridlock half to fasten over the pipe and secure from below with four 5/16" socket head screws. The Mega-Gridlock half has slots along the edge that act like a wrench to hold the four Nyloc nuts from turning during installation. Only a slight downward pressure with your fingers is required to hold a nut in place for installation. The track hanger slides over the track prior to placing the track in position. Support track approximately every 4 feet.

Safe Vertical Working Load: 300 Pounds

Hardware: 4 each 5/16" × 2" socket head Cap Screws and Nyloc Nuts

Dimensions: 3.65 × 3.65 inches

Weight: 1 Lb

There are two versions of the Mega-Track Hanger, and the alternate Mega-Track Hanger Long hangs from the upper pipe of the grid and has an offset length from the track to the pipe the diameter of the bottom grid pipe plus 3/16 of an inch.
