BTX 5060 Classic Track

The BTX 5060 Classic drapery system forms the backbone of the BTX® 5060 program. More than 15,000 units have been put into operation since this successful model was launched in early 2007. The architectural headrail ensures a clean aesthetic look combined with a compact profile. The structural channel design of the Sofia headrail distinguishes this system from most of the DC-driven lightrail drapery systems recently introduced in the market. It ensures increased load carrying capacity and the ability to provide highly accurate curves.

BTX Classic motors were designed to form an integral part of the architectural headrail, attaching by means of a quick-locking bayonet system. They are ideal for safe installation and easy detachment in the unlikely event of required service (however, in practice, these motors are virtually maintenance-free).

BTX Classic automated drapery systems can be operated by hardwired switches or by means of a complete range of external remote (including RF, IR and switch) or network controlled methods, like DMX.




product details

BTX Classic track FEATURES

  • Quiet, synchronous AC motor

  • Flexible control options include RF, IR, switch or network

  • Strong motor can pull draperies weighing up to 200 lbs, or with tandem motors, 240 lbs

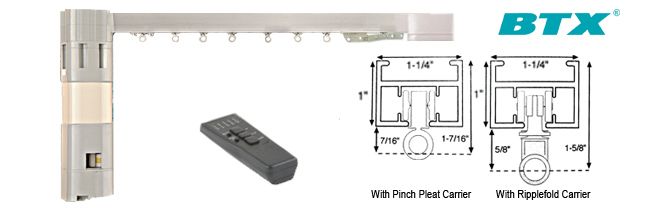

  • Compact architectural headrail accepts pinch pleat, Ripplefold® or Accordiafold® carriers

  • Easy to install, easy to operate

PARAMETERS

  • Max. Width = 50 ft Min.

  • Curve Radius = 14 "

  • Max. Pulling Capacity = 70-240* lbs (*With tandem-mounted motors) Pulling capacity is based on standard straight track systems only.

  • Curving will reduce curtain capacity by 15% per curve.

  • Motor Speed = 6" per second (30 feet per minute)

HARDWARE

  • Option of 30 and 45 Watt synchronous 110V or 220V UL-recognized motor

  • Anodized aluminum track available in four colors: White/Anodized/Black/Dark Bronze.

  • Drapery hangs below the track for optimum performance.
