Toggle Anchor. High-Strength
Price Ranges
$2.8 - $5.35
Item #104984
| Product Specifications |
|---|
| Material: Steel - Plastic |
| Kit: Single piece |

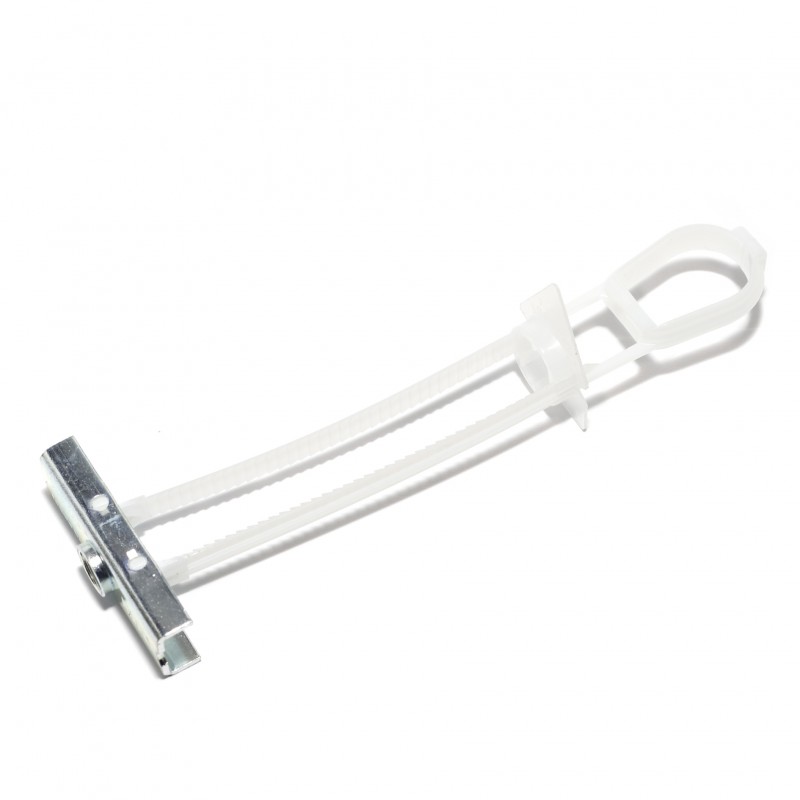

Toggle Fastener
These high-strength toggle anchors provide an extremely strong hold and stay in position when a bolt is removed. To install, push the toggle through a drilled hole and pull the anchor back toward you until the toggle rests flush against the wall. Then, slide the cap up to the wall and snap off the straps. Next, position your fixture, insert a screw, and tighten. For use with machine screws. The minimum screw length is the wall and fixture thicknesses plus 1/2".
Zinc-plated steel toggle anchors resist corrosion in wet environments.
Works on drywall, plaster, hollow block, wood paneling.
Machine screws sold separately.
See the chart below for more information:
| Diameter | Thread Size | Strength in Lbs. (pull out/shear) |
| 3/16 in | 24 thread | 200 lbs.* |
| 1/4 in | 20 thread | 200 lbs.* |
| 3/8 in | 16 thread | 400 lbs.* |
*Tested in hollow concrete block.
