Telescopic Drape Supports
| Product Specifications |
|---|
| Material: Heavy duty aluminum |
| Kit: Two piece telescoping |
| Tube Outside Diameter: 1-9/16" and 1.54" |

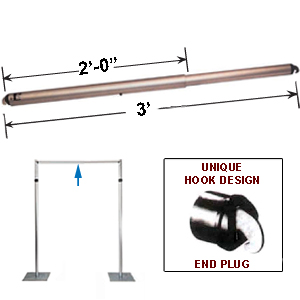

Telescopic Drape Support
Telescopic crossbars used as horizontal drapery support, allowing for easy setup of portable drapes.
Two-piece assembly with clear anodized coating keeps curtains clean. Features unique heavy gage zinc plated hook design. These portable curtain supports can be used at any length between fully collapsed to maximum stop length.
Product Features
Easy to set up
Easy to setup, accurate and rapid length adjustment.
Solid
Low center of gravity reduces twisting
End plug
High impact polypropylene & heavy gage zinc plated steel hook.
Flexible
Low center of gravity reduces twisting
Low profile
Low center of gravity reduces twisting.
Durable
All tubing surfaces have protective clear anodized coating that keeps drapery clean.
Secure
Deep engagement slot minimizes accidental removal from uprights.
0026-001422/
0026-001423
Primary use: This crossbar is primarily used where shorter drape supports are needed (i.e. masking around columns and poles).
Manufactured from heavy wall, high strength aluminum. Outer tube 1 9/16" diameter and inner tube 1.54” diameter.
Length range: 2’ to 3’.
Collapsed length: 2’ long.
Stops at: 3'.
Weight: 1.33 lbs.
0026-001408/
0026-001409
Primary use: This crossbar is primarily used where shorter drape supports are needed (i.e. masking around columns and poles).
Manufactured from heavy wall, high strength aluminum. Outer tube 1 9/16" diameter and inner tube 1.54” diameter
Length range: 3’ to 5’.
Collapsed length: 3’ long.
Stops at: 5'.
Weight: 2 lbs.
0026-001410/
0026-001411
Primary use: This crossbar is primarily used where shorter drape supports are needed (i.e. masking around columns and poles).
Manufactured from heavy wall, high strength aluminum. Outer tube 1 9/16" diameter and inner tube 1.54” diameter.
Length range: 4’ to 7’.
Collapsed length: 4’2" long.
Stops at: 6' & 7'.
Weight: 2.67 lbs.
0026-001412 / 0026-001413
Primary use: This crossbar is primarily used where shorter drape supports are needed (i.e. masking around columns and poles).
Manufactured from heavy wall, high strength aluminum. Outer tube 1 9/16" diameter and inner tube 1.54” diameter.
Length range: 5’ to 8’.
Collapsed length: 5’2" long.
Stops at: 8'.
Weight: 3.34 lbs.
0026-001414 / 0026-001415
Primary use: This crossbar is primarily used for boothing and backwall applications.
Outer tube 1 9/16" diameter and inner tube 1.54” diameter, heavy wall, high strength aluminum.
Length range: 6’ to 10’.
Collapsed length: 6’2" long.
Stops at: 8' & 10'.
Weight: 4 lbs.
0026-001416 / 0026-001417
Primary use: This crossbar is primarily used for boothing and backwall applications.
Outer tube 1 9/16" diameter and inner tube 1.54” diameter, heavy wall, high strength aluminum.
Length range: 7’ to 12’.
Collapsed length: 7’2" long.
Stops at: 10' & 12'.
Weight: 4.7 lbs.
0026-001418 / 0026-001419
Primary use: This crossbar is primarily used for boothing and backwall applications.
Outer tube 1 9/16" diameter and inner tube 1.54” diameter, heavy wall, high strength aluminum.
Length range: 8’ to 14’.
Collapsed length: 8’2" long.
Stops at: 10', 12' & 14'.
Weight: 5.1 lbs.
0026-001420 / 0026-001421
Primary use: This crossbar is primarily used for supporting banners, lighter weight drapes or screening surfaces.
Outer tube 1 9/16" diameter and inner tube 1.54” diameter, heavy wall, high strength aluminum.
Length range: 9’ to 16’.
Collapsed length: 9’2" long.
Stops at: 12', 14' & 16'.
Weight: 6 lbs.
IMPORTANT
For added safety never tip the structure up or down during setup. Draperies and drape supports should always be mounted and removed while the uprights are vertical.
