Pipe Battens

https://www.sktheatricaldraperies.com/web/image/product.template/277/image_1920?unique=3ff7cc1
Price Ranges
$10.2 - $14.45
Full Bulk: $10.2 - $14.45
Item #0024-004302

$ 11.90 11.9 USD $ 11.90

$ 0.00

  • Material
  • Internal Diameter
  • Pipe Schedule

This combination does not exist.

21 yard(s)
meter(s)
Sold in increments of: 21 foot(ft)
Do you have questions about this product?
Contactus for answers.

Pipe Battens

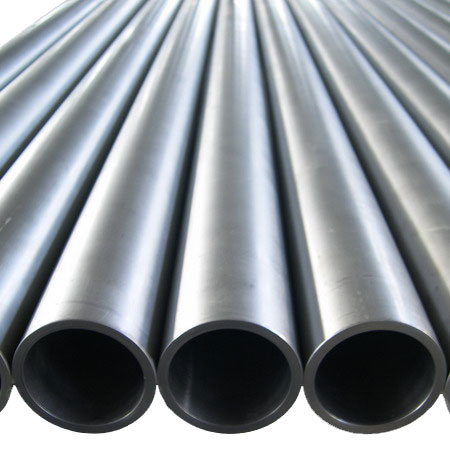

Pipe battens are recommended for supporting all suspended track systems, especially curved track systems. Pipe battens provide a rigid support for the softer metal used in the fabrication of curtain tracks.

The prices listed above are for straight pipe only, 21 feet long pieces. Ships via LTL from California warehouse.

Additional information:

  • Curved: 1-1/4" I.D. Schedule 40 pipe. Used when ordering curved track and pipe together. Must be curved to match the curtain track curve. Minimum radius: 2 feet.

  • Curved: 1-1/4" I.D. Schedule 40 Pipe. Used when ordering curved pipe without curved track. Minimum radius: 2 feet.

  • Straight: 1-1/4" I.D. Schedule 40 Pipe. Used as backbone pipe for straight tracks. Can be used to support stationary curtains.

  • Straight: 1" I.D. Schedule 40 Pipe. Mostly used with Rotodrapers® to support side curtains (a.k.a. legs or wings).

  • Straight: 1-1/2" I.D. Schedule 40 Pipe. Can be used to support extra-heavy curtain tracks and curtains. Also used to create pipe grids.

  • Curved: 1-1/2" I.D. Schedule 40 Pipe. Used with extra heavy curved tracks and curtains. Minimum radius: 2 feet.


Notes: Price listed for full length pipes (21 ft). Ships from California warehouse.

Specifications

Internal Diameter 1-1/4 inches - 1-1/2 inches - 1 inch
Material Steel
Pipe Schedule Schedule 40 Pipe
