Base Assemblies

https://www.sktheatricaldraperies.com/web/image/product.template/304/image_1920?unique=c9b38b2
Price Ranges
$21.1 - $232.4
Full Bulk:
Item #101425

21.10 21.1 USD 21.10

0.00

  • Material
  • Finish
  • Base Weight
  • Recommended uprights high

This combination does not exist.

1 yard(s)
meter(s)
Minimum Purchase Required: 1 Unit(s)
Product Specifications
Material: Zinc-plated steel
Recommended uprights high: Check the information table below
see more... see less...

Base Assemblies for Portable Drapery

Base assemblies are flat metal plates with a vertical removable pin, used to secure and support portable drapery assemblies, also known as pipe and base sets. These bases come in a variety of sizes and weights that can be matched with the corresponding upright bar and telescopic drape support. All steel base plates are zinc plated for rust protection and long life. Bases are also available with black powder coated finish at additional cost.

Zinc-plated steel base plates for rust protection and long trouble-free life. Bases include SLIP FIT PIN, and are manufactured with two pin holes to allow for multiple upright usage with a single base.

Product Features

Low profile

Low profile design minimizes tripping the public.

Stacking design

Stacking slots reduce storage space need.

Durable

Bases and pin are zinc plated for rust protection and long life.

0026-001424 / 0026-001425

The base is recommended for uprights up to 3' high.
Dimensions: 8" x 14" x 3/16" thick.
Standard pin size: 1.5"
Weight: 6 lbs.

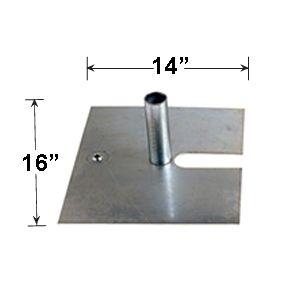

0026-001426 / 0026-001427

The base is recommended for uprights up to 8' high.
Dimensions: 14" x 16" x 3/16" thick.
Standard pin size: 1.5"
Weight: 12 lbs.

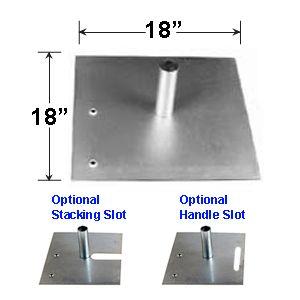

0026-001428 / 0026-001429

The base is recommended for uprights up to 12' high.
Dimensions: 18" x 18" x 3/16" thick.
Standard pin size: 2" X 4"
Weight: 17.5 lbs.

0026-001430 / 0026-001431

The base is recommended for uprights up to
16' high.
Dimensions: 18" x 18" x 3/8" thick.
Standard pin size: 2" X 6"
Weight: 35 lbs.

0026-001432 / 0026-001433

The base is recommended for uprights up to
18' high.
Dimensions: 24" x 24" x 3/16" thick.
Standard pin size: 2" X 8"
Weight: 31 lbs.

0026-001434 / 0026-001435

The base is recommended for uprights up to
24' high.
Dimensions: 24" x 24" x 3/8" thick.
Standard pin size: 2" X 8"
Weight: 62 lbs.

IMPORTANT NOTE: When setting up your system, adding sand bags or stage weights to the bases increase system stability and is a good precaution. Minimum base size recommended is only an estimate, and base safety and stability will depend on system setup and curtain weight.
