Adjustable Uprights
| Product Specifications |
|---|
| Material: Heavy duty aluminum |
| Kit: Two / Three piece telescoping |

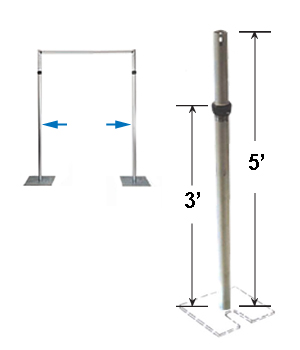

Two Piece Telescoping Upright with
Adjustable Length
Manufactured from heavy duty 2” diameter and 1 13/16” diameter aluminum pipe. Equipped with one set of (4) slots, positioned every 90°. Slots are located 3/8" from top, leaving a solid ring for added strength. One additional set of slots at 3' high.
0026-001642/0026-001643
Maximum length: 5’ long.
Weight: 2.6 lbs.
0026-001644/0026-001645
Maximum length: 7’ long.
Weight: 3.2 lbs.
0026-001646/0026-001647
Maximum length: 8’ long.
Weight: 3.7 lbs.
0026-001648/0026-001649
Maximum length: 10’ long.
Weight: 4.5 lbs.
0026-001650/0026-001651
Maximum length: 12’ long.
Weight: 5.4 lbs.
0026-001652/0026-001653
Maximum length: 14’ long.
Weight: 6.2 lbs.
0026-001654/0026-001655
Maximum length: 16’ long.
Weight: 7 lbs.
0026-001656/0026-001657
Maximum length: 18 long.
Weight: 7.8 lbs.
0026-001658/0026-001659
Maximum length: 20’ long.
Weight: 11 lbs.
0026-001660/0026-001661
Maximum length: 22’ long.
Weight: 13 lbs.
0026-001662/0026-001663
Maximum length: 24' long.
Weight: 14 lbs.
0026-001664/0026-001665
Maximum length: 26' long.
Weight: 16 lbs.
Three Piece Telescoping Upright with Adjustable Length
Manufactured from heavy duty 2” diameter, 1 13/16” diameter and 1 5/8” diameter aluminum tube. Equipped with two sets of (4) slots, positioned every 90°. Slots are located 3/8" from top, leaving a solid ring for added strength. One additional set of slots at 3' high.
0026-001666/0026-001667
Maximum length: 11’ long.
Weight: 5.4 lbs.
0026-001668/0026-001669
Maximum length: 14’ long.
Weight: 6.2 lbs.
0026-001670/0026-001671
Maximum length: 17’ long.
Weight: 7.8 lbs.
0026-001672/0026-001673
Maximum length: 20’ long.
Weight: 13.5 lbs.
0026-001674/0026-001675
Maximum length: 23’ long.
Weight: 15 lbs.
HOW SLIP-LOCK WORKS?
The SLIP-LOCK collar assembly locks automatically when the inner pole is raised vertically to the desired height. As a vertical load is applied downward, the ball-taper lock feature locks tighter. The more pressure applied downward the tighter it will lock. To release the lock, simply raise the inner pole slightly and lift the release ring. For SAFETY, hold the inner pole firmly while raising or lowering the height.
Product Features
Easy to setup
Accurate and rapid height adjustment.
Flexible
No knobs or wing nuts to adjust.
No tools
No tools required for set-up or disassembly
Durable
No knobs or wing nuts to adjust.
Quickly adjusts
To any height within the specific model range
NOTE: Minimum height (collapsed height) may increase slightly by the height of the base pin.
