4200 Curtain Track Channel
Price Ranges
$378.76 - $670.65
Item #0024-001544

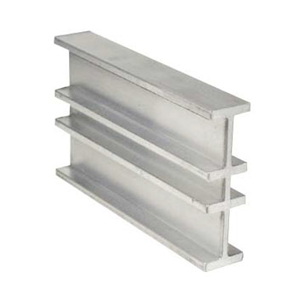

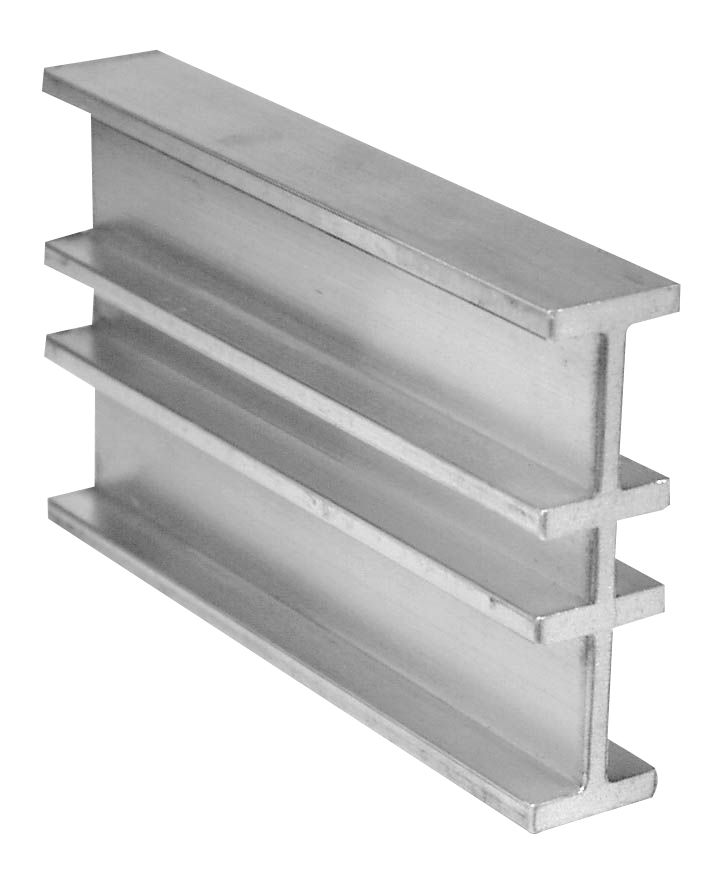

4200 Curtain Track Channel
Double I-Beam type curtain track channel made from 7 gauge extruded aluminum, mill-finish. Obtainable in unspliced lengths up to 20'. Curved on-the-job or at the factory (optional) to a 2’ minimum radius (layout dependent). Flange above carrier prevents tilting of carrier. Approximately: 1" wide x 3-3/8" high.
Weight: 1' - 1 lb. 8 oz.
Specifications
Finish | Aluminum - Black |
Length | 16 ft (4.88 m) - 18 ft (5.49 m) - 20 ft (6.10 m) |
Material | Aluminum |
Height | 3-3/8 (8.57 cm) |
Width | 1 in (2.54 cm) |
Weight | 1 lb 8 oz per foot |
Kit | Single piece |
