1400 Rig-I-Flex® Track Channel
1400 Curtain Track Channel

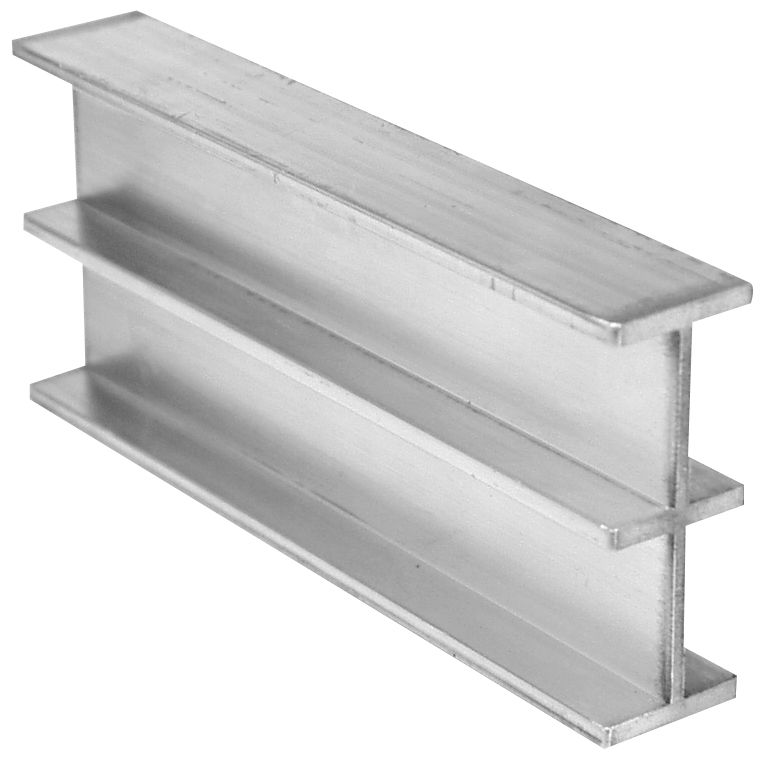

I-Beam type curtain track channel made from 11 gauge extruded aluminum, mill-finish or anodized black finish [BL Models]. Obtainable in unspliced lengths up to 20'. May be curved on-the-job to a recommended minimum radius of 2' (layout dependent). The center flange prevents the tilting of the carrier.
Approximately: 1" wide x 2-1/2" high.
Weight: 1 - 10 oz.
NOTE: Long track sections ship via LTL freight and are subject to dimensional shipping charges.
Tracks can be cut into shorter sections - up to 8'11" long - for more affordable shipping rates via UPS Ground.
Cut track lengths may require #4224 splicing clamps are also purchased to connect the track sections together.
|Finish||Aluminum - Black|
|Length||16 ft (4.88 m) - 18 ft (5.49 m) - 20 ft (6.10 m)|
|Height||2-1/2 in (6.35 cm)|
|Width||1 in (2.54 cm)|
|Weight||10 oz per foot|
