14A Rotodraper® Pivot Device

https://www.sktheatricaldraperies.com/web/image/product.template/162/image_1920?unique=c9b38b2

With Spring Loaded Lock

Price Ranges
$282.13
Full Bulk:
Item #100978

282.13 282.13 USD 282.13

0.00

  • Material
  • Weight
  • Kit

This combination does not exist.

1 yard(s)
meter(s)
Minimum Purchase Required: 1 Unit(s)
Product Specifications
Material: Steel
Weight: 4-1/2 lbs
Kit: Assembly
see more... see less...

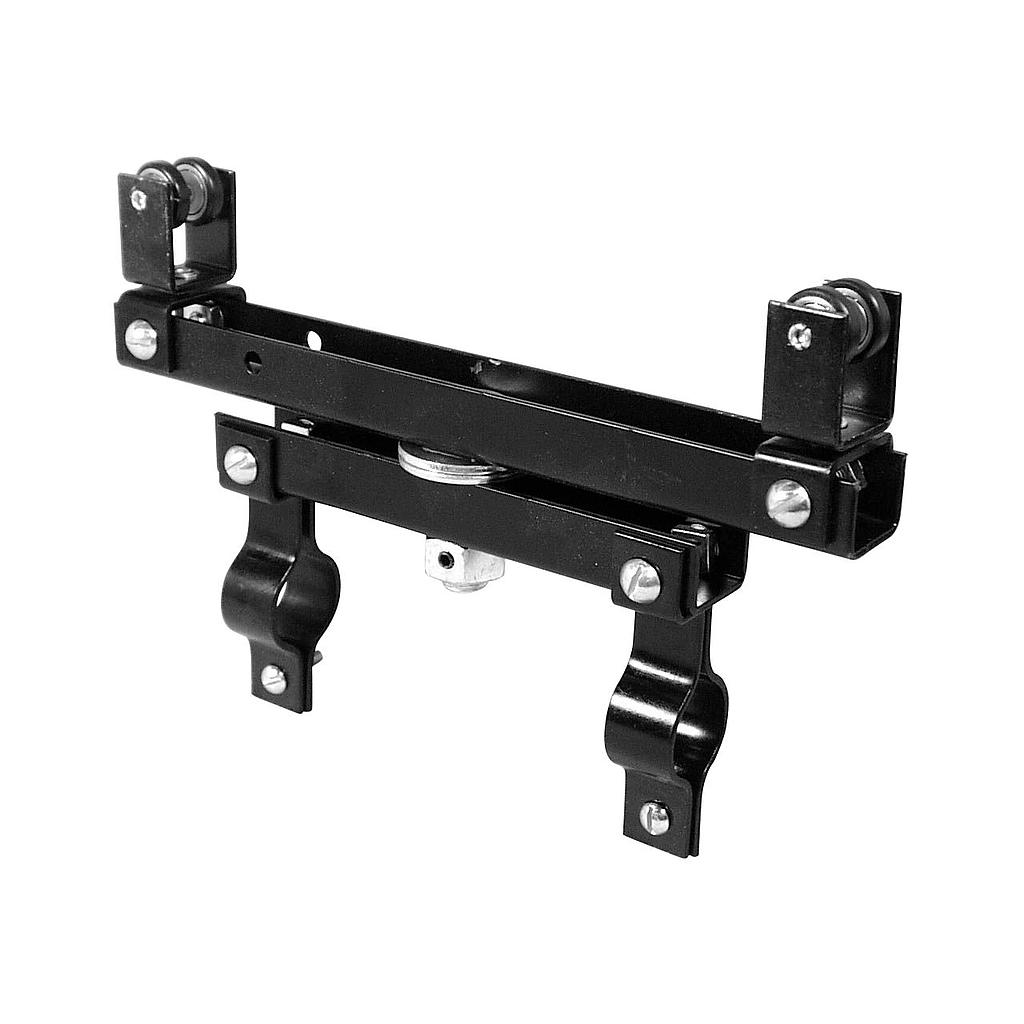

14A Rotodraper® Pivot Device

Used with 1400 and 4200 track. Essentially same as Model 14 except includes ball-type locking device which provides precise 15 degree settings of rotation. Brackets formed of 11 gauge steel. Can support 75 lbs. maximum weight. Two Pipe Clamps supplied (clamps for 1" pipe standard).

Two No. 400-C Clamps provided for connecting towlines.

Dimensions: 13" long x 4" wide x 10" high

Weight: 1 - 4-1/2 lbs.

Note:


Safety end stops are included with all track type Rotodrapers® and MUST be used.
