1604 Adjustable Dead End Pulley
Item #
This product is no longer available.

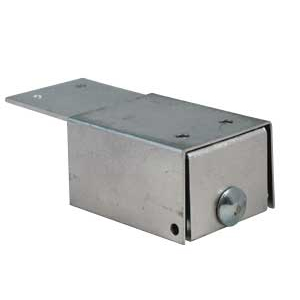

1604 Adjustable Dead End Pulley
Equipped with 1-1/4" diameter steel ball bearing wheel adjustable for adding cord tension. Anchored to track end opposite curtain machine. Also functions as end stop. Extends 2-1/2" beyond track end.
Compatible with MOTO-TRAC® 160 Series Track only.
Pulley width: Approximately 2-1/4".
Weight: 1 - 1 lb. 1 oz.
![[0024-000875] 1109IV End Stop](/web/image/product.template/97/image_128/%5B0024-000875%5D%201109IV%20End%20Stop?unique=2aea0b5)
![[0024-000861] 1110 Removable End Stop](/web/image/product.template/83/image_128/%5B0024-000861%5D%201110%20Removable%20End%20Stop?unique=2aea0b5)
![[0024-000876] 1110IV Removable End Stop](/web/image/product.template/98/image_128/%5B0024-000876%5D%201110IV%20Removable%20End%20Stop?unique=2aea0b5)
![[0024-000865] 1173 Wall Flange](/web/image/product.template/87/image_128/%5B0024-000865%5D%201173%20Wall%20Flange?unique=2aea0b5)
![[0024-001049] 1604 Adjustable Dead End Pulley](/web/image/product.template/177/image_128/%5B0024-001049%5D%201604%20Adjustable%20Dead%20End%20Pulley?unique=2aea0b5)
![[0024-000846] 1132B Ball Bearing Master Carrier](/web/image/product.template/70/image_128/%5B0024-000846%5D%201132B%20Ball%20Bearing%20Master%20Carrier?unique=2aea0b5)
![[0024-001048] 1603 Live End Pulley](/web/image/product.template/176/image_128/%5B0024-001048%5D%201603%20Live%20End%20Pulley?unique=2aea0b5)
![[0024-001047] 1624 Splicing Clamp](/web/image/product.template/175/image_128/%5B0024-001047%5D%201624%20Splicing%20Clamp?unique=2aea0b5)
![[0024-001050] C040 Cable](/web/image/product.template/178/image_128/%5B0024-001050%5D%20C040%20Cable?unique=2aea0b5)
![[Curtain] Custom Curtain Fabrication](/web/image/product.product/1692/image_128/%5BCurtain%5D%20Custom%20Curtain%20Fabrication?unique=b737a71)
Specifications
| Material | Steel |
| Wheels | Steel ball-bearing |
| # wheels | 1 |
| Width | 2-1/4 in (5.7 cm) |
| Weight | 1 lb 1 oz |
| Extends | 2-1/2 in (6.35 cm) |
| Kit | Single piece |
