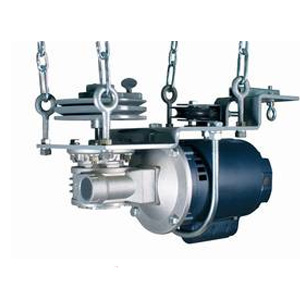

2917 Silver Service In-Line Machine

https://www.sktheatricaldraperies.com/web/image/product.template/211/image_1920?unique=4e23c26

170 Series Track System

Price Ranges
$5487.92 - $5512.04
Full Bulk:
Item #0024-001579

5,512.04 5512.04 USD 5,512.04

0.00

  • Cable Speed
  • Control voltage
  • Number of wires for remote control
  • Phase
  • Volts
  • Height
  • Length
  • Width
  • Weight
  • Mounting Spec
  • Machine Power

This combination does not exist.

1 yard(s)
914.99 meter(s)
Minimum Purchase Required: 1 Unit(s)
ADD TO CART
Cable Speed: 90/45 fpm (2.30/1.15 mpm)
Control voltage: 24 VAC
Number of wires for remote control: 4 (plus ground)
Phase: 1
Volts: 120V
Height: 18 in (45.72 cm)
Length: 18 in (45.72 cm)
Width: 18 in (45.72 cm)
Weight: 45 lbs (20 kg)
Machine Power: 1/2 Horsepower
see more... see less...
Do you have questions about this product?
Contactus for answers.

2917 Silver Service In-Line Machine. 1/2 H.P.

This machine is specifically designed to work with No. 170 Series tracks, and for projects requiring the curtain machine to be located off of the finished floor. This model machine is designed to attach to, and align with, the curtain track and be supported by an overhead structure via eye-bolts mounted to the machine’s base. The machine eliminates the vertical operating cables that normally run from a floor mounted machine to the track live-end pulley. The control box for this model machine is connected by 6' of BX cable to the machine. Control is stop/start/reverse from any point of travel.

Machine can be equipped with friction brakes at additional cost.

These machines are not to be used for the lifting, supporting, or transporting of people. These machines should not be used to move objects over areas where people are present unless suitable safety devices are installed.

Inline machines utilize track mounted direct strike limit switches to signal the fully open and fully closed positions of the curtains. You received 2 track mounted limits with their roller yokes attached in the correct orientation. You should not have to move the roller yokes of the limit switches.

2917 Silver Service In-Line Machine. 1/2 H.P.

Horsepower: 1/2

Volts: 120

Phase: 1

Cable speed: 90/45 fpm

Number of wires for remote control: 4 (plus ground)

Control voltage: 24 VAC

Approximate dimensions: 18"L x 18"W x 18"H

Approximate shipping weight: 45 lbs
