2914 Silver Service In-Line Machine for 140 Track

Price Ranges
Full Bulk:
Item #0024-001576

5,836.02 5836.02 USD 5,836.02


  • Cable Speed
  • Control voltage
  • Number of wires for remote control
  • Phase
  • Volts
  • Height
  • Length
  • Width
  • Weight
  • Mounting Spec
  • Curtain Separation Speed
  • Machine Power

This combination does not exist.

1 yard(s)
Minimum Purchase Required: 1 Unit(s)
Do you have questions about this product?
Contactus for answers.

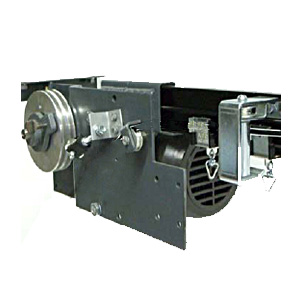

2914 Silver Service In-Line Machine. 1/2 H.P.

This machine is specifically designed to work with No. 140 Series tracks, and for projects requiring the curtain machine to be located off of the finished floor. This model machine is designed to attach to, and align with, the curtain track and be supported by an overhead structure via eye-bolts mounted to the machine’s base. The machine eliminates the vertical operating cables that normally run from a floor mounted machine to the track live-end pulley. The control box for this model machine is connected by 6' of BX cable to the machine. Control is stop/start/reverse from any point of travel.

This machine is available for special situations only. It does not carry a UL or ETL listing at this time. Please contact the factory for additional information on this machine.

Machines can be equipped with friction brakes at additional cost.

These machines are not to be used for the lifting, supporting, or transporting of people. These machines should not be used to move objects over areas where people are present unless suitable safety devices are installed.

Inline machines utilize track mounted direct strike limit switches to signal the fully open and fully closed positions of the curtains. You received 2 track mounted limits with their roller yokes attached in the correct orientation. You should not have to move the roller yokes of the limit switches.

2914 Silver Service In-Line Machine. 1/2 H.P.

Horsepower: 1/2

Volts: 120

Phase: 1

Cable speed: 90/45 fpm

Number of wires for remote control: 4 (plus ground)

Control voltage: 24 VAC

Approximate dimensions: 18"L x 18"W x 18"H

Approximate shipping weight: 55 lbs

Odoo text and image block


Mounting Spec Suspended - Left - Suspended - Right - Ceiling mount - Left - Ceiling mount - Right
Cable Speed 90/45 fpm (2.30/1.15 mpm)
Control voltage 24 VAC
Number of wires for remote control 4 (plus ground)
Phase 1
Volts 120V
Height 18 in (45.72 cm)
Length 18 in (45.72 cm)
Width 18 in (45.72 cm)
Weight 55 lbs (25 kg)
Curtain Separation Speed ND
Machine Power 1/2 Horsepower
