1100A Curtain Track Channel
Price Ranges
$79.02 - $138.28
Item #0024-000693

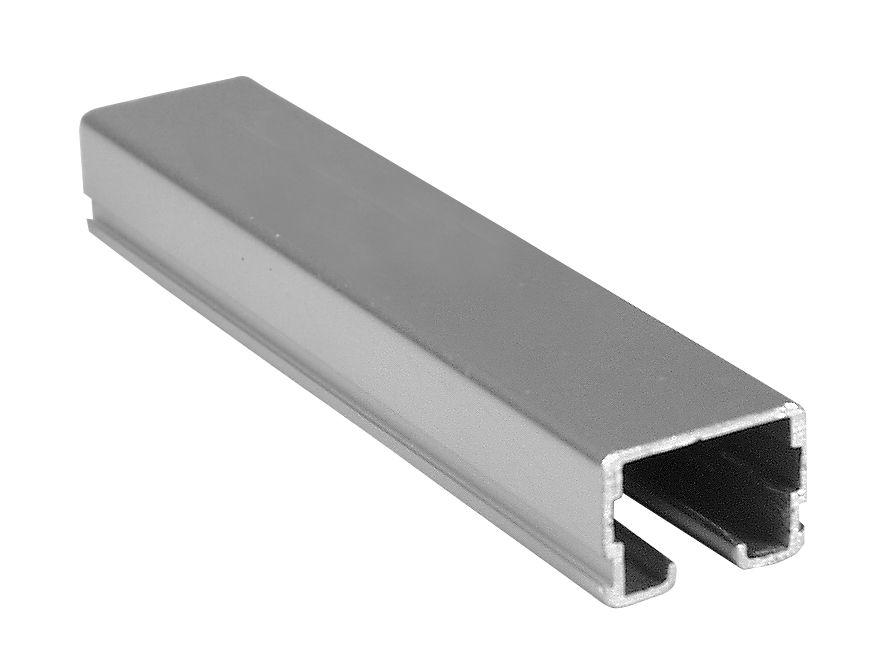

1100A Curtain Track Channel
16 gauge extruded aluminum, clear anodized finish. Obtainable in unspliced lengths up to 20'. When recess mounting is desired, dovetail design on exterior of channel allows joint compound to seep into slot allowing a flush finish. Approximately: 1-1/4" wide x 7/8" high. Weight: 1' - 5 oz.
NOTE: Long track sections ship via LTL freight and are subject to dimensional shipping charges.
Tracks can be cut into shorter sections -up to 8'11" long- for more affordable shipping rates via UPS Ground.
Cut track lengths may require #1124A splicing clamps are also purchased to connect the track sections together.
Clear anodized finish
Length (Weight):
16 ft (5 lbs)
18 ft (5 lbs 10 oz)
20 (6 lbs 4 oz)
Black powder coated
Length (Weight):
8 ft (2 lbs 8 oz)
10 ft (3 lbs 2 oz)
14 (4 lbs 6 oz)
Specifications
Finish | Aluminum - Black |
Length | 8 ft (244 cm) - 10 ft (305 cm) - 14 ft (4.27 m) - 16 ft (4.88 m) - 18 ft (5.49 m) - 20 ft (6.10 m) |
Material | Aluminum |
Height | 7/8 in (2.25 cm) |
Width | 1-1/4 in (3.18 cm) |
Weight | 5 oz per foot |
Kit | Single piece |
