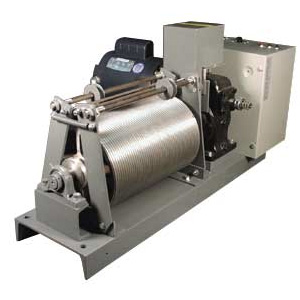

    7005TV HERCULES® curtain machine. 1 H.P.

    Models 7005-TV is a variable speed powerful curtain machine that combines versatility with power and drum capacity needed to operate extra large and super heavy draw curtains. Equipped with electronic frequency drives, the TV series machines are the most versatile in the ADC line.

    While designed for draw applications, this machine offers a multitude of parameters that can be programmed in the field to meet a variety of applications. Parameters such as run speed, maximum obtainable speed, minimum obtainable speed, acceleration ramp time and deceleration ramp time are easily changed at the drive. Each machine is provided with deceleration limit switches which allow the machine to decelerate to a stop rather than abruptly stop at the end of its travel. These machines also feature emergency overtravel limit switches and push buttons which bypass the deceleration ramp time and shut the machine off immediately. The operation of these machines is Start/Stop/Reverse from any point of travel and low voltage control is standard. If versatility is a project requirement, the "TV" series of machines are the best option. A Cable Tension Device is included as standard equipment. A magnetic brake, for precise stopping, is available as an option.

    Output drums are 8" diameter x 12" long and are grooved for 3/16" wire center cable. Maximum cable travel is 90'. Cable speed is 0 to 72 fpm.

    Guard (ME-1) not shown. Required for ETL compliance.

    Draw curtain machines and drapery motors cannot be used for lifting, since they are not designed for an overhung type of load.


    Allows for user defined decelerated pre-set stops for the "Full Open" and "Full Close" positions. The limit assembly is also supplied with emergency overtravel limit switches which bypass the deceleration ramps and shut the machine off immediately.


    Toggle switch which removes power to machine’s internal circuitry.


    Provides user definable parameters of operation. Examples are: run speed, maximum obtainable speed, minimum obtainable speed, acceleration ramp time and deceleration ramp time.


    Automatically helps eliminate cable slack. Also helps retain cable within grooves of drum.


    Facilitates hand operation of curtain in case of mechanical or power failure.


    Assures positive drive without cable slippage. Aluminum construction 8" diameter x 12" long. Coated wire-center cable must be used. Drum must be at least 14' from track live end pulley, or last pulley in system to allow cable to wind properly on drum.

    Speed cannot be adjusted while machine is operating without effecting limit positions.

    7005TV HERCULES® curtain machine. 1 H.P.

    Horsepower: 1

    Volts: 120/220 (1 phase) or 208/230 (3 phases)

    Phase: 1 or 3

    Cable speed: 0-72 fpm (variable)

    Maximum one way cable travel: 90 feet.

    Number of wires for remote control: 4

    Control voltage: 24 VAC

    Approximate dimensions: 42"L x 30"W x 18"H

    Approximate shipping weight: 245 lbs
