1483INV Inverted Wall Bracket
https://www.sktheatricaldraperies.com/shop/0024-001143-1483inv-inverted-wall-bracket-208 https://www.sktheatricaldraperies.com/web/image/product.template/208/image_1920?unique=b3a1cf3
Price Ranges
$62.25
Full Bulk:
Item #0024-001143
Do you have questions about this product?
Contactus
for answers.

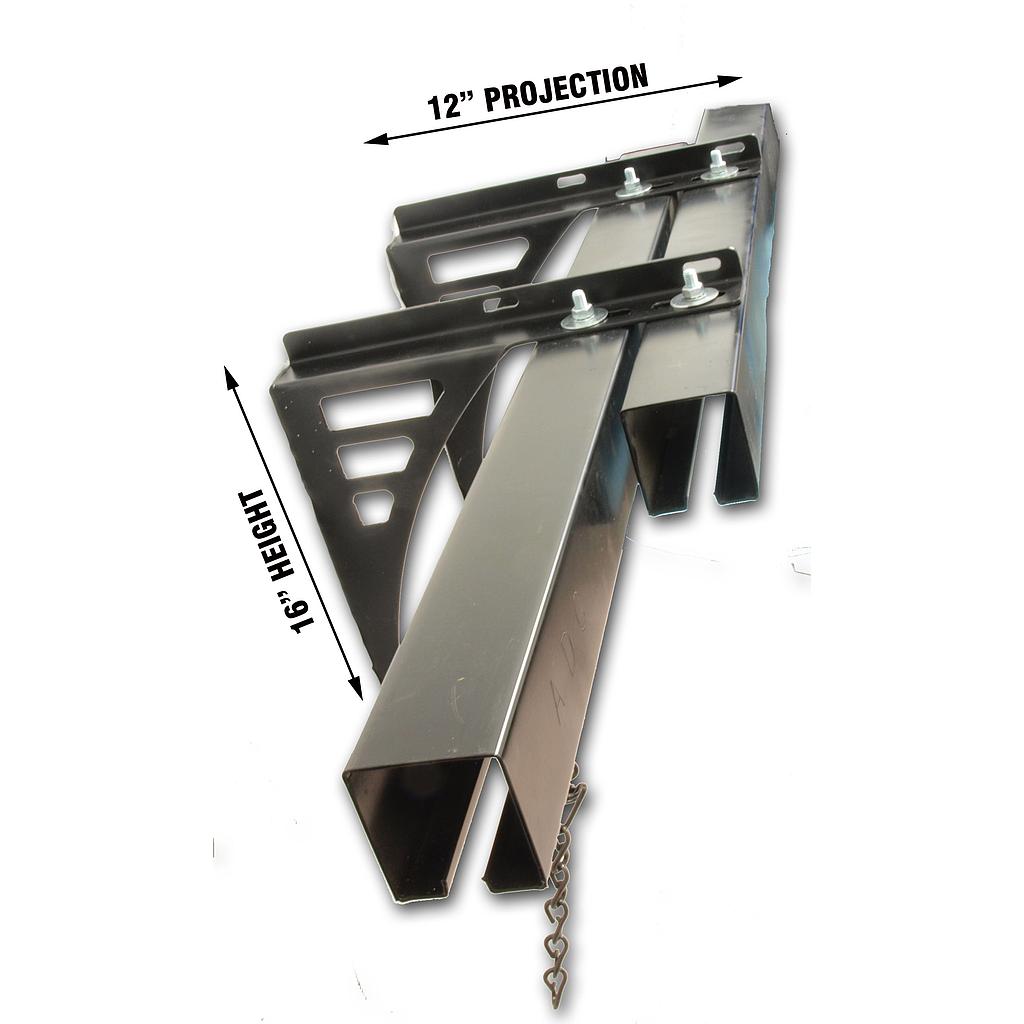

1483INV Inverted wall brackets
Inverted wall mount brackets provide the same benefits as the 1483UNI brackets, but allow the tracks to be mounted closer to the ceiling and are hidden from view when the curtain is closed. A top rib is fabricated into the piece to provide load support for the cantilivered arm as well as provide slots for additional support to the overhead structure.
Fabricated from 1/8" steel with a black powder coated finish.
1383UNI Universal Wall Bracket
14 Rotodraper® Pivot Device
1408A L-Clip Adapter
1478 Suspension Strap
1478A Suspension Strap w/pipe clamp
1481 Twist Strap
1481A Twist Strap w/pipe clamp
1482 Double Track Hanger
1483 Track Wall Bracket
1483INV Inverted Wall Bracket
2163 Projection Bracket
STRUTBR Wall Bracket
Strut Channel Wall Bracket
1483INV Inverted Wall Bracket
1483UNI Wall Bracket Multi-Track Use
2800 Curtain Track Channel
2801 Single Carrier
2801A Single Carrier
2802 Master Carrier
2803 Live End Pulley
2803B Center Take Off Pulley
2803F Flying Live End Pulley
2804 Dead End Pulley
2805 Adjustable Floor Pulley
2806 Fixed Floor Pulley
2807 Lap Clamp
2808 Hanging Clamp
2808ID Hanging Clamp with Cord Support
2809 End Stop
2814 Pipe Clamp
2815 Pipe Clamp
2816 Pipe Clamp
2821 Pocket Mounting Bracket
2822 Pocket Mounting Bracket
2823 Ceiling Bracket
2824 Suspended Splicing Clamp
2824A Ceiling Splicing Clamp
2825 Rubber Bumper
2826 Rubber Spacer
2828 Sash Cord
2829 Cable
2833 Back Pack Guide®
2834 Back Pack Guide®
2839 Overlapping Master Carrier
2840 Masking/Panel Master Carrier
2848 Space Saver
2861 Door Carrier
2865 Tension Floor Pulley
2904 SILVER SERVICE® Curtain Machine. 1/2 H.P.
2904TV SILVER SERVICE® Curtain Machine. 1/2 H.P.
2905 SILVER SERVICE® curtain machine. 1/2 H.P.
2928 Silver Service In-Line Machine. 1/2 H.P.
2961 Autodrape Silver service® curtain machine. 1/2 H.P.
CPS-1 Center Pipe Support for 280 series
Pipe Battens
THREADR Hanging Bracket for threaded rod
Specifications
Material | Steel |
Finish | Black |
Height | 16 in (40.64 cm) |
Kit | Single piece |
Projection | 12" |
