1402 OLR Master Carrier with Overlap Arm (RIGHT)

https://www.sktheatricaldraperies.com/web/image/product.template/152/image_1920?unique=23d2f81
Price Ranges
$168.67
Full Bulk:
Item #0024-000961

168.67 168.67000000000002 USD 168.67

0.00

  • Material
  • Wheels
  • # wheels
  • Overlap
  • Width
  • Weight
  • Kit

This combination does not exist.

Minimum Purchase Required: 1 Unit(s)

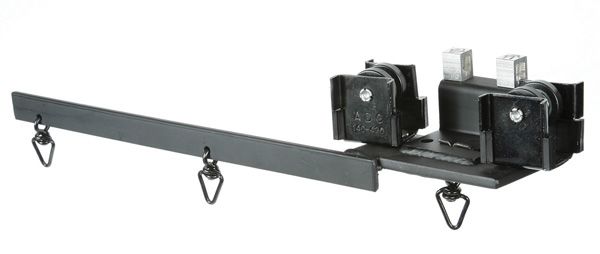

1402 right-hand Master Carrier with Overlap Arm

Master carrier with an extension arm to allow curtains to overlap at track center, for bi-parting systems, using a single track in place of 2 overlapped track sections. This carrier provides a fixed overlap of 12" in front of 12" when combined with the 1402 OLL Master Carrier (left) for cord-drawn or bi-parting operation.

The plated steel swivels are spaced 6" on center.

Plated steel body supported from 4 nylon-tired ball-bearing wheels. Snap-on nylon spacers attached to the body, helps reduce noise and friction during operation. Pivoting body allows this carrier to easily maneuver curved track systems. Model 4252A is available for walk-along operation.

Dimensions: 15-1/2" L x 3-1/4" W

Weight: 1 - 12 oz.

Specifications

Material Steel
Wheels Nylon-tired ball-bearing
# wheels 4
Overlap 24 in (12" in front of 12")
Width 3-1/4 in (8.25 cm)
Weight 12 oz
Kit Single piece
