RIG-I-FLEX® 140 Series Track

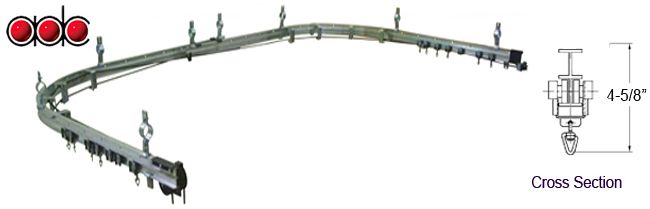

ADC RIG-I-FLEX 140 curtain track is a versatile I-beam track system which has been engineered for both curved (ADC Model 140) and straight (ADC Model 141) cord operated systems as well as for "walk-along" (ADC Model 142) systems. It was designed for medium weight curtains on stages and TV studios and for enclosing areas in industrial plants. Overall track length should not exceed 60' for split draws (bi-parts) or 40' for one-way draws.

ADC Model 140 utilizes spindles and idler brackets (Not included in CWANA track pricing) for guiding the operating cord along the curved areas. The track can be curved on-the-job or at the factory (optional) to a minimum 2’ radius.



This track cannot be used for reverse curved or serpentine layouts.

GENERAL SPECIFICATIONS:

  • Approximate max curtain weight per foot of track: 15 lbs.

  • Maximum track length (Bi-Part setup): 60 feet.

  • Carrier spacing: 12 inches.

  • Approximate curtain stacking space per foot of track: 1.8 inches (standard layout, based on average track length for individual track models)

  • Minimum radius for curved sections: 24 inches (2 feet).

  • Approximate assembly shipping weight: 2 lbs/linear foot.


ADC manually operated cord-drawn curved tracks require more effort than straight tracks. Therefore, motorized systems should be used, especially where sharp curves are involved.

The ADC 140 series track is also available with a black finish at an additional cost (240 Rig-I-Flex® curtain track).

NOTE: For more satisfactory track operation, the track must be solidly anchored to an overhead structure surface mounted with ceiling clamps. Pipe backbones are recommended for suspended systems.

Important

A scaled drawing or template must accompany each inquiry or order for ADC model 140 RIG-I-FLEX® curved tracks. Only in this way can the required number of spindles and idler brackets be quoted or supplied. When ordering, advice whether the track is to be ceiling-mounted, suspended or wall mounted.

Related parts and components for the 140 curtain track system are listed below, including pricing and specifications.

For more details on other models within the ADC 140 series or for walk-along operation, click on the links listed on the left column.


14 Rotodraper® Pivot Device
Price Ranges
$222.66
Full Bulk:
222.66 222.66 USD
1400 Rig-I-Flex® Track Channel
Price Ranges
$197.2 - $355.13
Full Bulk:
0.00 0.0 USD
1402 Master Carrier
Price Ranges
$107.75 - $115.77
Full Bulk:
0.00 0.0 USD
1402 OLL Master Carrier with Overlap Arm (LEFT)
Price Ranges
$181.9
Full Bulk:
181.90 181.9 USD
1402 OLR Master Carrier with Overlap Arm (RIGHT)
Price Ranges
$181.9
Full Bulk:
181.90 181.9 USD
1403 Live End Pulley
Price Ranges
$95.31 - $102.94
Full Bulk:
0.00 0.0 USD
1403A Center Take Off Live End Pulley
Price Ranges
$113.96
Full Bulk:
113.96 113.96000000000001 USD
1403B Live End Pulley
Price Ranges
$111.05
Full Bulk:
111.05 111.05 USD
1403F Flying Live End Pulley
Price Ranges
$98.68
Full Bulk:
98.68 98.68 USD
1404 Dead End Pulley
Price Ranges
$72.59 - $84.0
Full Bulk:
0.00 0.0 USD
1404A Dead End Pulley
Price Ranges
$60.89
Full Bulk:
60.89 60.89 USD
1407 Lap Clamp
Price Ranges
$25.78 - $31.02
Full Bulk:
0.00 0.0 USD
1407A Lap Clamp
Price Ranges
$28.32
Full Bulk:
28.32 28.32 USD
1408A L-Clip Adapter
Price Ranges
$3.38 - $4.11
Full Bulk:
0.00 0.0 USD
1409 End Stop
Price Ranges
$17.47 - $20.08
Full Bulk:
0.00 0.0 USD
1423 Ceiling Clamp
Price Ranges
$16.15 - $18.05
Full Bulk:
0.00 0.0 USD
143 Switcher-I® Curtain Track Switch
Price Ranges
$979.11 - $1020.76
Full Bulk:
0.00 0.0 USD
143-3 Fan Switch (3-Way)
Price Ranges
$1922.26 - $2018.37
Full Bulk:
0.00 0.0 USD
143-4 Fan Switch (4-Way)
Price Ranges
$1988.63 - $2088.06
Full Bulk:
0.00 0.0 USD
143-5 Fan Switch (5-Way)
Price Ranges
$2017.47 - $2118.34
Full Bulk:
0.00 0.0 USD
