2904S Draw Curtain Machine. Simplici-T Drive
1/2 Horsepower
| Cable Speed: 86 fpm (26 mpm) |
| Control voltage: 24 VAC |
| Maximum cable travel: 45 ft |
| Number of wires for remote control: 4 |
| Height: 18 in (45.72 cm) |
| Length: 18 in (45.72 cm) |
| Width: 18 in (45.72 cm) |
| Weight: 110 lbs (50 kg) |
| Machine Power: 1/2 Horsepower |
| Maximum cable pull: NA |

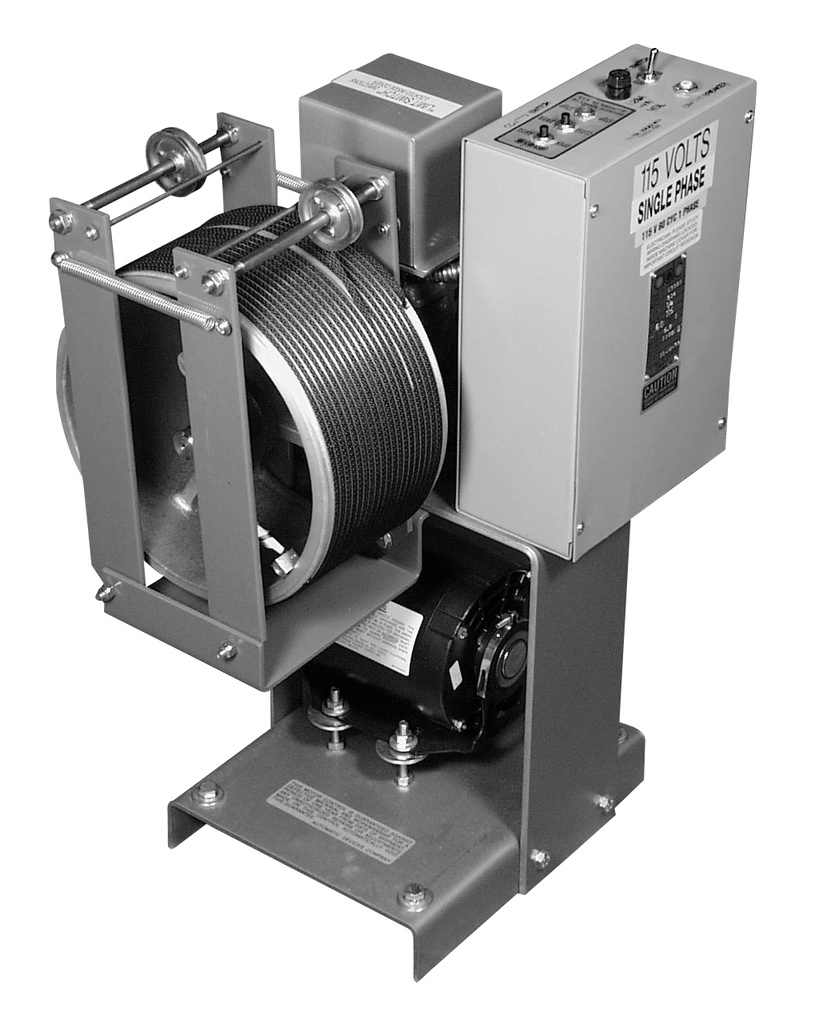

2904 SILVER SERVICE® Curtain Machine. 1/2 H.P.
Draw machine designed to operate medium weight curtains. Machine includes a 10" diameter x 5" wide helical grooved cable drum grooved for 3/16 wire center cable, belt drive, integral rotary limit switches, magnetic-control-system (full-voltage), and can be operated from an unlimited number of remote control stations (push-button type). This machine is available in a horizontal and "flying" configuration at to additional cost. When ordering a "flying" configuration the track model being used with the machine must be specified. Cable speed is 86 fpm fixed. Drum upgrade to 10" x 7" available.
2904 SILVER SERVICE® Curtain Machine. 1/2 H.P.
Horsepower: 1/2
Volts: 115 or 230
Phase: 1 or 3
Cable speed: 86 fpm
Maximum one way cable travel: 45 feet.
Number of wires for remote control: 4
Control voltage: 24 VAC
Approximate dimensions: 18"L x 18"W x 18"H
Approximate shipping weight: 110 lbs (160 lbs with guard)
