2906 SILVER SERVICE® lift curtain machine. 1/2 H.P.

Price Ranges
Full Bulk:
Item #0024-001596

5,026.69 5026.6900000000005 USD 5,026.69


  • Cable Speed
  • Control voltage
  • Maximum cable travel
  • Number of wires for remote control
  • Phase
  • Volts
  • Height
  • Length
  • Width
  • Weight
  • Curtain Separation Speed
  • Key Features
  • Machine Power
  • Maximum cable pull

This combination does not exist.

1 yard(s)
914.99 meter(s)
Minimum Purchase Required: 1 Unit(s)
Cable Speed: 0-72 fpm (0-22 mpm) Variable
Control voltage: 24 VAC
Maximum cable travel: 90 ft
Number of wires for remote control: 4
Height: 18 in (45.72 cm)
Length: 42 in (107 cm)
Width: 30 in (76 cm)
Weight: 230 lbs (105 kg)
Curtain Separation Speed: ND
Machine Power: 1/2 Horsepower
Maximum cable pull: NA
see more... see less...
Do you have questions about this product?
Contactus for answers.

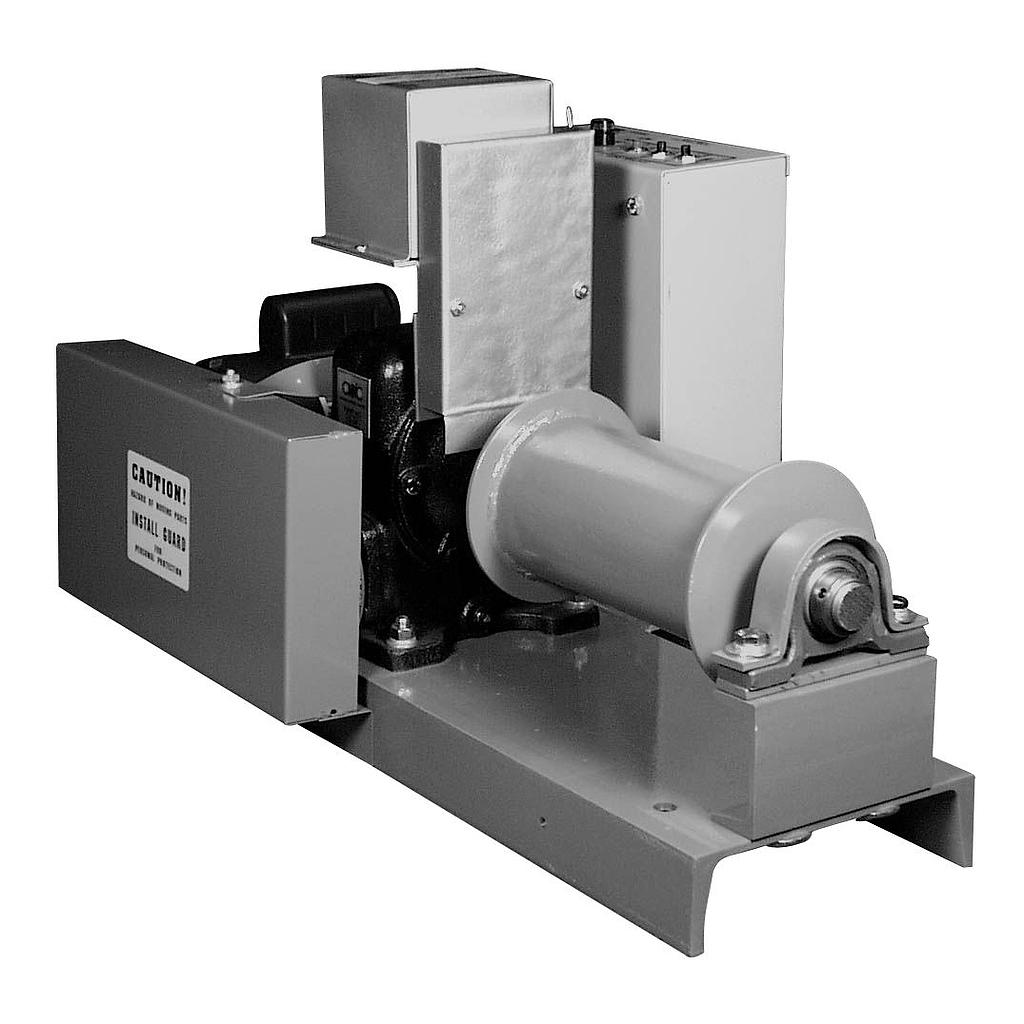

2906 SILVER SERVICE® lift curtain machine. 1/2 H.P.

Lift machine designed as an economical solution to the motorization of lift curtains, rated to lift a 400 pound load when connected to a standard cable type lift system. Machine includes an un-grooved 4" diameter x 8" long steel spool, integral rotary limit switches, belt drive, fixed speed AC motor and operates from a single remote control (toggle type). Cable speed is 18 fpm fixed.

Since this machine is not equipped with friction brakes, some drifting may occur when stop command is issued. A fairly high reduction in the gear unit helps minimize this drifting. Stop, Start and Reverse action is provided with a reversing motor and three-position maintained control switch. Integral rotary limit switches are provided the for "Full Raise" and "Full Lower" positions.

Guard (ME-1) not shown. Required for ETL compliance.

These machines are not to be used for the lifting, supporting, or transporting of people. These machines should not be used to move objects over areas where people are present unless suitable safety devices are installed.


Helps to assure a positive drive and minimize cable slippage. Constructed of coated steel 4" diameter x 8" long. Coated wirecenter cable must be used.


For conversion to hand operation in case of mechanical or power failure.


Allows for user defined pre-set stops for the "Full Raise" and "Full Lower" positions. Fully adjustable cam type assembly.


Three-position maintained toggle type. Only one remote control station can be used with this machine, this being wired temporarily to machine at the factory to allow limit switch setting during installation. Magnetic Control System (MCSA) and Low Voltage Control System (LVCS), available as options and allow the use of any number of remote control switches.


Provided by the gear reduction unit only. Provided when switch is moved to center "off" position. A friction type magnetic brake is available as an option.


Safety toggle switch which removes power to machine’s internal circuitry.


Automatic type helps protect machine, track and curtain against effects of accidental overload. Must be manually reset.

2906 SILVER SERVICE® lift curtain machine. 1/2 H.P.

Horsepower: 1/2

Volts: 115 or 230(power & control)

Phase: 1

Lifting speed: 18 fpm

Maximum cable pull: 400 lbs.

Maximum cable travel: 48 feet.

Number of wires for remote control: 3 (plus ground).

Approximate dimensions: 29"L x 11"W x 17"H

Approximate shipping weight: 160 lbs
