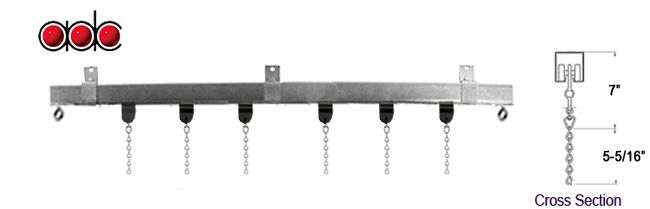

SILENT STEEL® 284 Curtain Track

ADC Model 284 is used for walk along operation only and is supplied with no pulleys or operating cord. The difference between Model 284-N and 284-R is as follows: Model 284 employs 2801 single and 2802 master carriers. Model 284-N: No. 2851 Nylon Ball-Bearing Single Carriers and No. 2852 Nylon Ball-Bearing Master Carriers are used for increased capacity.

Model 284-R: No. 2849 Neoprene Ball-Bearing Single Carriers and No. 2850 Neoprene Ball-Bearing Master Carriers are used for increased capacity and extra quiet operation.



This track model is also available with a black finish (384) at additional cost.

SILENT STEEL® 284 Curtain Track

  • Approximate max curtain weight per foot of track: 20 lbs.

  • Maximum track length (Bi-Part setup): 60 feet.

  • Carrier spacing: 12 inches.

  • Approximate curtain stacking space per foot of track: 2.4 inches (standard layout, based on average track length for individual track models)

  • Approximate assembly shipping weight: 4 lbs/linear foot.

1483INV Inverted Wall Bracket
Rango de precios
$70.75
Bulto Completo:
70.75 70.75 USD
1483UNI Wall Bracket Multi-Track Use
Rango de precios
$79.36
Bulto Completo:
79.36 79.36 USD
28 Rotodraper® Pivot Device
Rango de precios
$157.0
Bulto Completo:
157.00 157.0 USD
2800 Curtain Track Channel
Rango de precios
$366.52 - $1035.71
Bulto Completo:
0.00 0.0 USD
2801 Single Carrier
Rango de precios
$15.1 - $15.69
Bulto Completo:
0.00 0.0 USD
2802 Master Carrier
Rango de precios
$48.78 - $53.51
Bulto Completo:
0.00 0.0 USD
2802B Master Carrier with Brake
Rango de precios
$353.79
Bulto Completo:
353.79 353.79 USD
2802B4 Master Carrier with Brake
Rango de precios
$349.88
Bulto Completo:
349.88 349.88 USD
2807 Lap Clamp
Rango de precios
$15.68 - $33.21
Bulto Completo:
0.00 0.0 USD
2808 Hanging Clamp
Rango de precios
$7.34 - $10.74
Bulto Completo:
0.00 0.0 USD
2809 End Stop
Rango de precios
$8.51 - $11.74
Bulto Completo:
0.00 0.0 USD
2814 Pipe Clamp
Rango de precios
$13.96 - $16.83
Bulto Completo:
0.00 0.0 USD
2815 Pipe Clamp
Rango de precios
$14.41 - $17.88
Bulto Completo:
0.00 0.0 USD
2816 Pipe Clamp
Rango de precios
$13.74 - $20.71
Bulto Completo:
0.00 0.0 USD
2821 Pocket Mounting Bracket
Rango de precios
$26.46
Bulto Completo:
26.46 26.46 USD
2822 Pocket Mounting Bracket
Rango de precios
$24.76
Bulto Completo:
24.76 24.76 USD
2823 Ceiling Bracket
Rango de precios
$34.09
Bulto Completo:
34.09 34.09 USD
2824 Suspended Splicing Clamp
Rango de precios
$74.33 - $96.7
Bulto Completo:
0.00 0.0 USD
2824A Ceiling Splicing Clamp
Rango de precios
$77.75 - $107.89
Bulto Completo:
0.00 0.0 USD
2840 Masking/Panel Master Carrier
Rango de precios
$267.95
Bulto Completo:
267.95 267.95 USD
