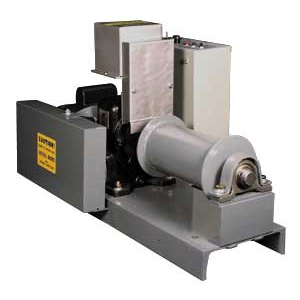

1456 AUTODRAPE® lift curtain machine. 1/3 H.P.

Lift machine designed as an economical solution to the motorization of lift curtains, rated to lift a 300 pound load when connected to a standard cable type lift system. Machine includes an un-grooved 4" diameter x 8" long steel spool, integral rotary limit switches, belt drive, fixed speed AC motor and operates from a single remote control (toggle type). Cable speed is 18 fpm fixed.

Since this machine is not equipped with friction brakes, some drifting may occur when stop command is issued. A fairly high reduction in the gear unit helps minimize this drifting. Stop, Start and Reverse action is provided with a reversing motor and three-position maintained control switch. Integral rotary limit switches are provided the for "Full Raise" and "Full Lower" positions.

Guard (ME-1) not shown. Required for ETL compliance.

These machines are not to be used for the lifting, supporting, or transporting of people. These machines should not be used to move objects over areas where people are present unless suitable safety devices are installed.


Helps to assure a positive drive and minimize cable slippage. Constructed of coated steel 4" diameter x 8" long. Coated wirecenter cable must be used.


For conversion to hand operation in case of mechanical or power failure.


Allows for user defined pre-set stops for the "Full Raise" and "Full Lower" positions. Fully adjustable cam type assembly.


Three-position maintained toggle type. Only one remote control station can be used with this machine, this being wired temporarily to machine at the factory to allow limit switch setting during installation. Magnetic Control System (MCSA) and Low Voltage Control System (LVCS), available as options and allow the use of any number of remote control switches.


Provided by the gear reduction unit only. Provided when switch is moved to center "off" position. A friction type magnetic brake is available as an option.


Safety toggle switch which removes power to machine’s internal circuitry.


Automatic type helps protect machine, track and curtain against effects of accidental overload. Must be manually reset.

1456 AUTODRAPE® lift curtain machine. 1/3 H.P.

Horsepower: 1/3

Volts: 115 (power & control)

Phase: 1

Lifting speed: 18 fpm

Maximum cable pull: 300 lbs.

Maximum cable travel: 48 feet.

Number of wires for remote control: 3 (plus ground).

Approximate dimensions: 29"L x 11"W x 17"H

Approximate shipping weight: 155 lbs

Odoo text and image block


Key Features Emergency Hand Crank - Rotary Limit Switches - Cable Spool - Braking Effect - Disconnect Switch - Overload Protective Breaker
Cable Speed 18 fpm (5.5 mpm)
Control voltage 115V
Maximum cable travel 48 ft
Number of wires for remote control 3 (plus ground)
Phase 1
Volts 115V
Height 17 in (43 cm)
Length 29 in (74 cm)
Width 11 in (28 cm)
Weight 155 lbs (70 kg)
Machine Power 1/3 Horsepower
Maximum cable pull 300 lbs (136 kg)
