2962 Autodrape Silver service® curtain machine. 1/2 H.P.

https://www.sktheatricaldraperies.com/web/image/product.template/340/image_1920?unique=4b61b02
Price Ranges
$5346.5
Full Bulk:
Item #0024-001587

5,346.50 5346.5 USD 5,346.50

0.00

  • Cable Speed
  • Control voltage
  • Number of wires for remote control
  • Phase
  • Volts
  • Height
  • Length
  • Width
  • Weight
  • Key Features
  • Machine Power

This combination does not exist.

1 yard(s)
meter(s)
Minimum Purchase Required: 1 Unit(s)
ADD TO CART
Product Specifications
Cable Speed: 45 fpm (1.15 mpm)
Control voltage: 24 VAC
Number of wires for remote control: 4
Phase: 1
Volts: 120V
Height: 24 in (61 cm)
Length: 15 in (38 cm)
Width: 12 in (30.50 cm)
Weight: 90 lbs (41 kg)
Machine Power: 1/2 Horsepower
see more... see less...

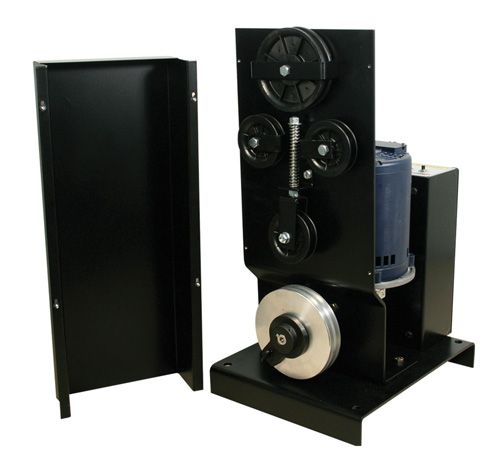

2962 Autodrape Silver Service® Curtain Machine. 1/2 H.P.

No. 2962 curtain motor is identical to model 2960 curtain machine, except it is supplied with a reduced fixed speed of 45 fpm instead of 90 fpm.

This machine is specifically designed for projects requiring curtain machines which can fit in narrow acoustical curtain pockets, and is capable of operating curtain track systems up to 75' in length (layout dependant) and curtains weighing up to 500 pounds. These machines utilize track mounted limit switches to further reduce the size of the machine and also to provide accurate positioning of the theater curtains. Controls for these machines are 24 VAC and thus are compatible with most automation systems. Input voltage is 120 VAC. These machines are equipped with a manual override device which allows the user to easily move the curtains in the event of a power failure.

One control switch three-button type marked Open, Close and Stop is provided with this machine. Any number of remote control stations can be used with this model machine. Machine is supplied with a set of controls on the control box and a set to be used as remote control station. No. 2962 direct drive machines utilize track mounted direct strike limit switches to signal the fully open and fully closed positions of the curtains. You received 2 track mounted limits with their roller yokes attached in the correct orientation. You should not have to move the roller yokes of the limit switches.
