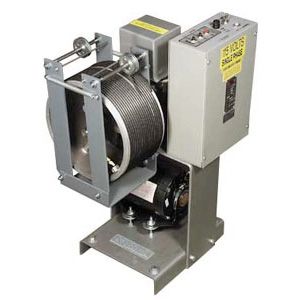

6504 SILVER SERVICE® Curtain Machine. 3/4 H.P.

https://www.sktheatricaldraperies.com/web/image/product.template/317/image_1920?unique=64aebba
Price Ranges
$5756.74
Full Bulk:
Item #0024-001492

5,756.74 5756.74 USD 5,756.74

0.00

    This combination does not exist.

    Minimum Purchase Required: 1 Unit(s)

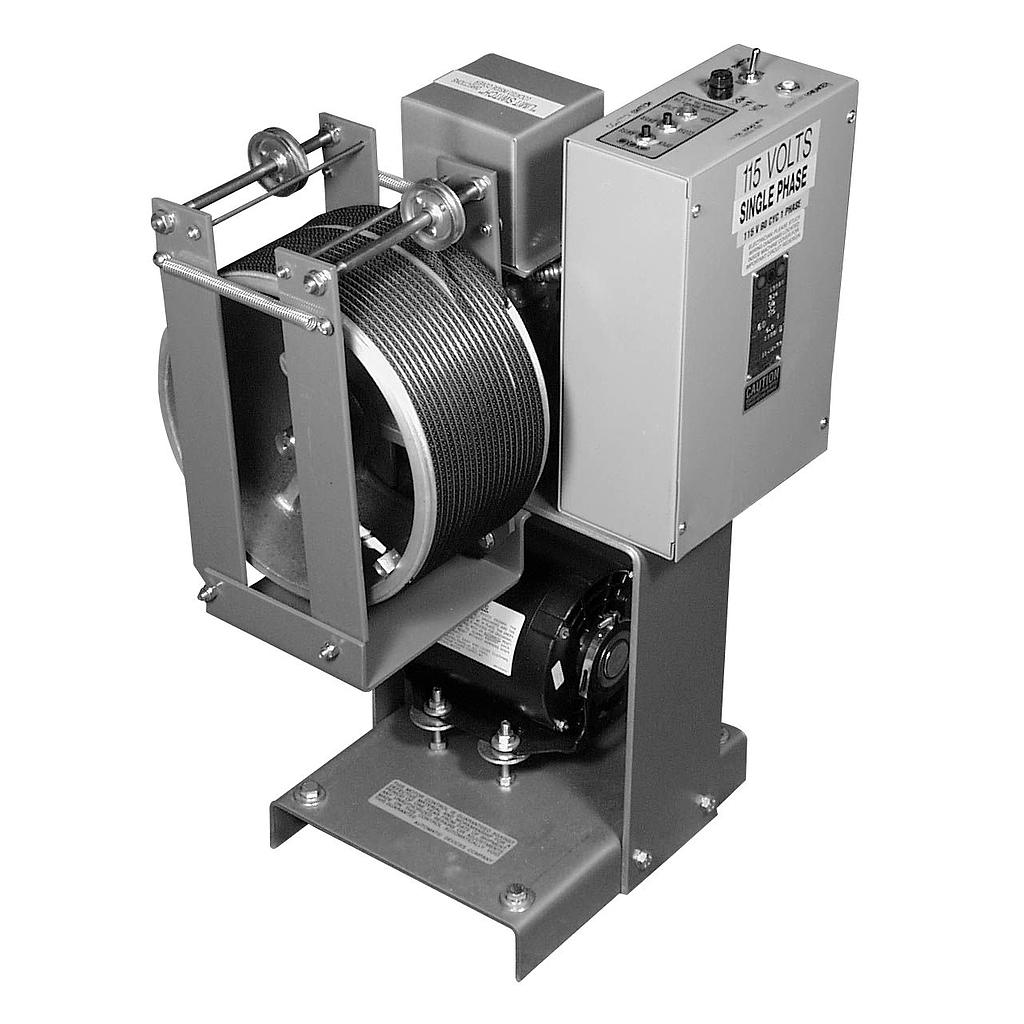

    6504 SILVER SERVICE® Curtain Machine. 3/4 H.P.

    Draw machine designed to operate medium weight curtains. Machine includes a 10" diameter x 5" wide helical grooved cable drum grooved for 3/16 wire center cable, belt drive, integral rotary limit switches, magnetic-control-system (full-voltage), and can be operated from an unlimited number of remote control stations (push-button type). This machine is available in a horizontal and "flying" configuration at to additional cost. When ordering a "flying" configuration the track model being used with the machine must be specified. Cable speed is 86 fpm fixed. Drum upgrade to 10" x 7" available.

    Guard (ME-2) not shown. Required for ETL compliance.

    Draw curtain machines and drapery motors cannot be used for lifting, since they are not designed for an overhung type of load.

    DRIVING DOG

    Releases drum from drive shaft. Allows drum to spin freely for manual operation of the track system.

    EMERGENCY HAND CRANK

    Facilitates hand operation of curtain in case of mechanical or power failure. Not supplied when cable tension device is furnished.

    ROTARY LIMIT SWITCHES

    Allow for "Full Close" and "Full Open" pre-set stops as cams engage switches. Fully adjustable cam type assembly.

    6504 SILVER SERVICE® Curtain Machine. 3/4 H.P.

    Horsepower: 3/4

    Volts: 115 or 230

    Phase: 1 or 3

    Cable speed: 86 fpm

    Maximum one way cable travel: 45 feet.

    Number of wires for remote control: 4

    Control voltage: 24 VAC

    Approximate dimensions: 18"L x 18"W x 18"H

    Approximate shipping weight: 115 lbs (165 lbs with guard)
