2905 SILVER SERVICE® curtain machine. 1/2 H.P.

https://www.sktheatricaldraperies.com/web/image/product.template/316/image_1920?unique=5a9cc18
Price Ranges
$6078.04
Full Bulk:
Item #0024-001491

6,078.04 6078.04 USD 6,078.04

0.00

  • Cable Speed
  • Control voltage
  • Maximum cable travel
  • Number of wires for remote control
  • Phase
  • Volts
  • Height
  • Length
  • Width
  • Weight
  • Curtain Separation Speed
  • Key Features
  • Machine Power
  • Maximum cable pull

This combination does not exist.

1 yard(s)
914.99 meter(s)
Minimum Purchase Required: 1 Unit(s)
ADD TO CART
Cable Speed: 72 fpm (22 mpm)
Control voltage: 24 VAC
Maximum cable travel: 90 ft
Number of wires for remote control: 4
Height: 18 in (45.72 cm)
Length: 30 in (76 cm)
Width: 18 in (45.72 cm)
Weight: 220 lbs (100 k
Curtain Separation Speed: 2.4 fps (0.73 mps)
Machine Power: 1/2 Horsepower
Maximum cable pull: NA
see more... see less...
Do you have questions about this product?
Contactus for answers.

2905 SILVER SERVICE® curtain machine. 1/2 H.P.

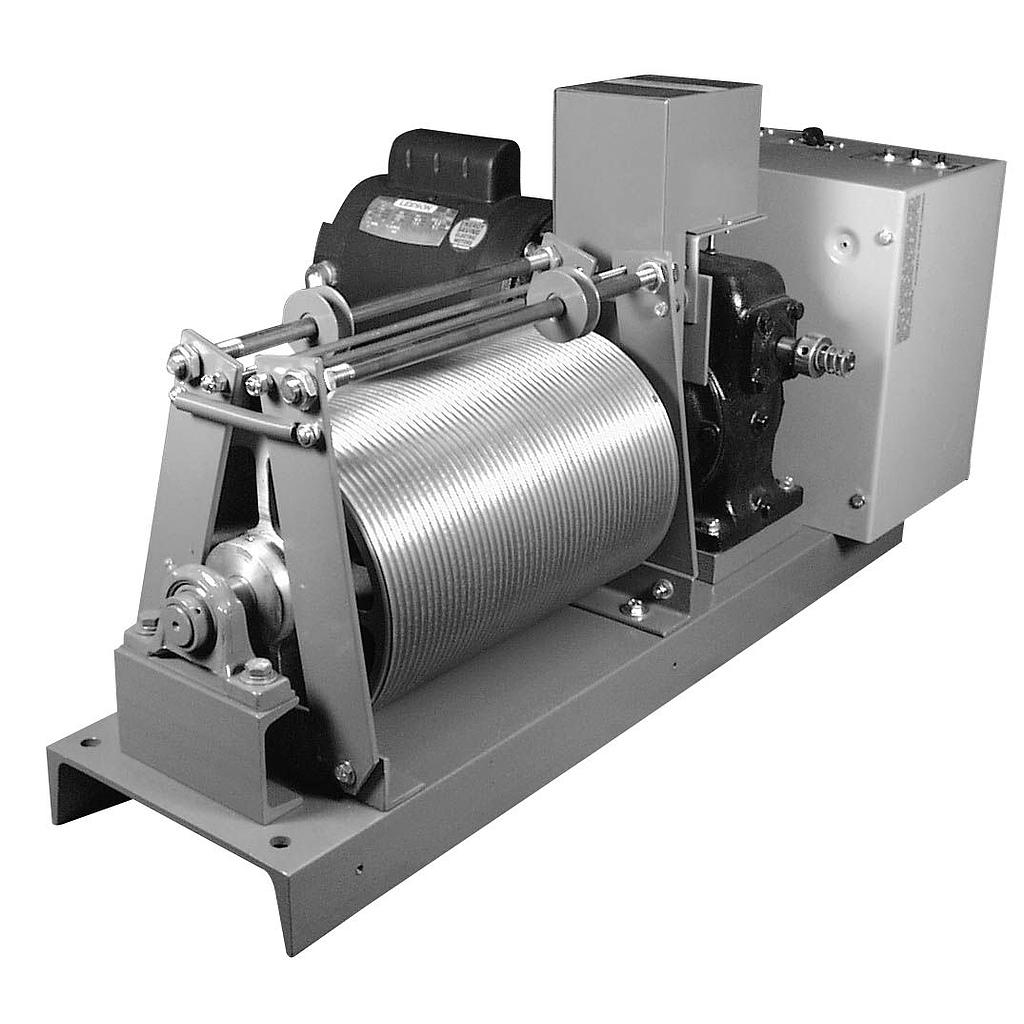

No. 2905 is a draw curtain machine designed to operate long heavy weight curtains. Machine includes an 8" diameter x 12" wide helical grooved cable drum grooved for 3/16 wire center cable, belt drive, integral rotary limit switches, cable tension device, magnetic-control-system (full-voltage), and can be operated from an unlimited number of remote control stations. Maximum cable travel (3/16" wire-center cable) is 90'. Cable speed is 72 fpm fixed.

Guard (ME-1) not shown. Required for ETL compliance.

Draw curtain machines and drapery motors cannot be used for lifting, since they are not designed for an overhung type of load.

ROTARY LIMIT SWITCHES

Allow for user definable preset stops for the "Full Close" and "Full Open" pre-set positions.

MAGNETIC CONTROL

Provides Start/Stop/Reverse control of the machine. Compatible with most automation systems. LVCS Low Voltage Control 24 VAC standard.

DISCONNECT SWITCH

Toggle switch which removes power to machine’s internal circuitry.

GROOVED CABLE DRUM

Assures positive drive without cable slippage. Coated wire-center cable must be used. Drum must be at least 14' from track live-end pulley, or last pulley in system to allow cable to wind properly on drum.

CABLE TENSION DEVICE

Automatically helps eliminate cable slack. Also helps retain cable within grooves of drum.

EMERGENCY HAND CRANK

Facilitates hand operation of curtain in case of mechanical or power failure.

CONTROL SWITCHES

Three-button type and marked Open, Close and Stop. No limit to number of control stations that can be used. Two supplied with each machine, one built on the machine and one to use as a remote control station.

2905 SILVER SERVICE® curtain machine. 1/2 H.P.

Horsepower: 1/2

Volts: 115 or 230

Phase: 1 or 3

Cable speed: 72 fpm

Curtain separation speed: 2.4 fps

Maximum one way cable travel: 90 feet.

Number of wires for remote control: 4

Control voltage: 24 VAC

Approximate dimensions: 30"L x 18"W x 18"H

Approximate shipping weight: 220 lbs
