9007 HERCULES® lift curtain machine. 2 H.P.
Especificaciones del Producto |
---|

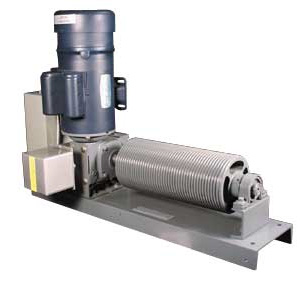

9007 HERCULES® Lift Curtain Machine. 2 H.P.
Lift machine designed for operation of extra-heavy motorized Austrian, Contour, Waterfall, and Gym Divider curtains and rated to lift a 500 pound load when connected to a standard cable type lift system. Machine includes 6" diameter x 14" wide helical grooved drum grooved for 3/16" wire center cable, right-angle gear reducer, integral limit switches, outboard support bearing, magnetic-control-system, and can be operated from an unlimited number of remote control stations (push-button type).
This unit is capable of lifting, without the need of counterweights, substantial loads in accordance with established maximum weights. Each machine is equipped with a built-in magnetic brake to facilitate precise positioning. Complete with magnetic friction brakes, Stop, Start and Reverse control plus direct drive, makes this machine completely versatile.
This unit is equipped with a powerful three phase, fixed speed motor.
Maximum cable travel is 70'. Cable speed is 54 fpm fixed.
