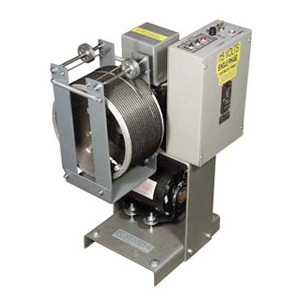

1454 AUTODRAPE® Curtain Machine. 1/3 H.P.

https://www.sktheatricaldraperies.com/web/image/product.template/335/image_1920?unique=5a9cc18

Bulto Completo:
Item #

Este producto ya no está disponible.

Do you have questions about this product?
Contactus for answers.


*** The manufacturer has discontinued this product ***

Consider using the 2904 SILVER SERVICE® Curtain Machine. 1/2 H.P.  as a substitute with increased torque and horsepower.

Draw machine designed to operate medium weight curtains. Machine includes a 10" diameter x 5" wide helical grooved cable drum grooved for 3/16 wire center cable, belt drive, integral rotary limit switches, magnetic-control-system (full-voltage), and can be operated from an unlimited number of remote control stations (push-button type). This machine is available in a horizontal and "flying" configuration at to additional cost. When ordering a "flying" configuration the track model being used with the machine must be specified. Cable speed is 86 fpm fixed. Drum upgrade to 10" x 7" available.

Guard (ME-1) not shown. Required for ETL compliance.

Draw curtain machines and drapery motors cannot be used for lifting, since they are not designed for an overhung type of load.

DRIVING DOG: Releases drum from drive shaft. Allows drum to spin freely for manual operation of the track system.

EMERGENCY HAND CRANK: Facilitates hand operation of curtain in case of mechanical or power failure. Not supplied when cable tension device is furnished.

ROTARY LIMIT SWITCHES: Allow for "Full Close" and "Full Open" pre-set stops as cams engage switches. Fully adjustable cam type assembly.

1454 AUTODRAPE® Curtain Machine. 1/3 H.P.

Horsepower: 1/3

Volts: 115 or 230

Phase: 1 or 3

Cable speed: 86 fpm

Maximum one way cable travel: 45 feet

Number of wires for remote control: 4

Control voltage: 24 VAC

Approximate dimensions: 18"L x 18"W x 18"H

Approximate shipping weight: 100 lbs (150 lbs with guard)

Odoo text and image block

Especificaciones

Fases 1 - 3
Voltios 230V - 115V
Características clave Driving Dog - Emergency Hand Crank - Rotary Limit Switches
Velocidad del cable 86 fpm (26 mpm)
Voltage del controlador 24 VAC
Maximo recorrido del cable 45 ft
Número de conductores por control remoto 4
Alto 18 in (45.72 cm)
Largo 18 in (45.72 cm)
Ancho 18 in (45.72 cm)
Peso 100 lbs (45 kg)
Potencia 1/3 Horsepower
Tracción máxima del cable NA
