2904 SILVER SERVICE® Curtain Machine. 1/2 H.P.
2904 SILVER SERVICE® Curtain Machine. 1/2 H.P.
Draw machine designed to operate medium weight curtains. Machine includes a 10" diameter x 5" wide helical grooved cable drum grooved for 3/16 wire center cable, belt drive, integral rotary limit switches, magnetic-control-system (full-voltage), and can be operated from an unlimited number of remote control stations (push-button type). This machine is available in a horizontal and "flying" configuration at to additional cost. When ordering a "flying" configuration the track model being used with the machine must be specified. Cable speed is 86 fpm fixed. Drum upgrade to 10" x 7" available.
Guard (ME-1) not shown. Required for ETL compliance.
Draw curtain machines and drapery motors cannot be used for lifting, since they are not designed for an overhung type of load.

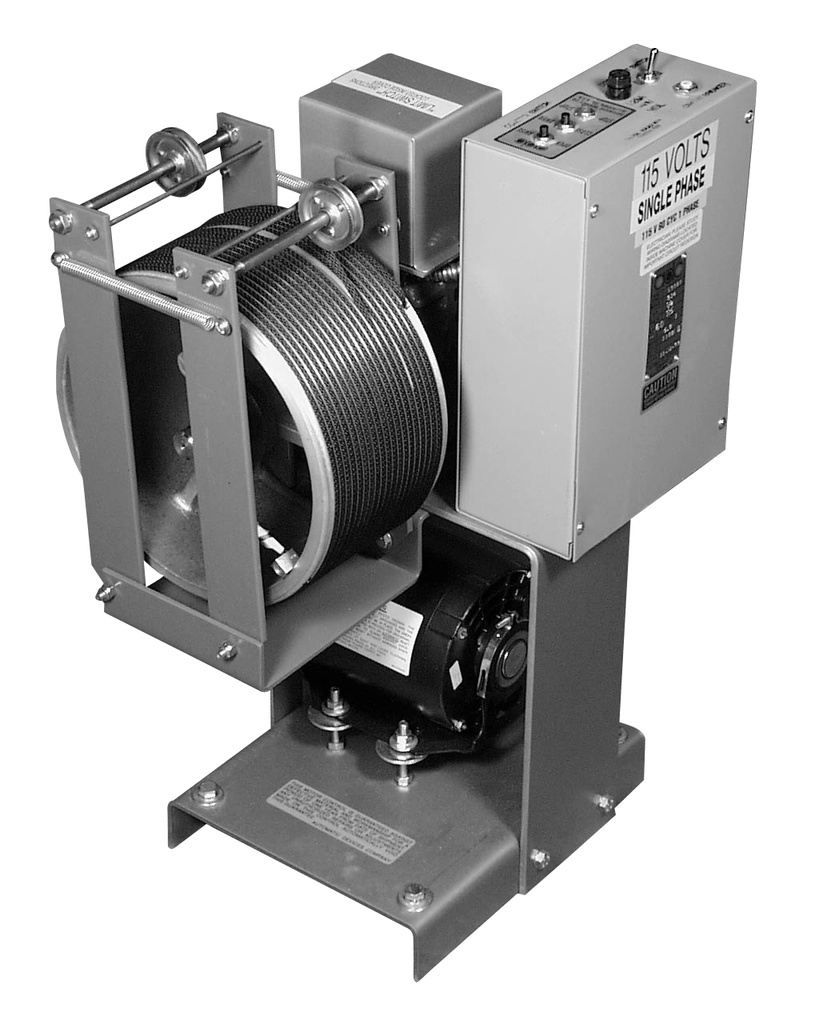

The product photo shows the CTD1 Cable Tension device (not included in the price, sold separately).
DRIVING DOG
Releases drum from drive shaft. Allows drum to spin freely for manual operation of the track system.
EMERGENCY HAND CRANK
Facilitates hand operation of curtain in case of mechanical or power failure. Not supplied when cable tension device is furnished.
ROTARY LIMIT SWITCHES
Allow for "Full Close" and "Full Open" pre-set stops as cams engage switches. Fully adjustable cam type assembly.
2904 SILVER SERVICE® Curtain Machine. 1/2 H.P.
Horsepower: 1/2
Volts: 115 or 230
Phase: 1 or 3
Cable speed: 86 fpm
Maximum one way cable travel: 45 feet.
Number of wires for remote control: 4
Control voltage: 24 VAC
Approximate dimensions: 18"L x 18"W x 18"H
Approximate shipping weight: 110 lbs (160 lbs with guard)
Especificaciones
| Fases | 1 - 3 |
| Voltios | 230V - 115V |
| Características clave | Driving Dog - Emergency Hand Crank - Rotary Limit Switches |
| Velocidad del cable | 86 fpm (26 mpm) |
| Voltage del controlador | 24 VAC |
| Maximo recorrido del cable | 45 ft |
| Número de conductores por control remoto | 4 |
| Alto | 18 in (45.72 cm) |
| Largo | 18 in (45.72 cm) |
| Ancho | 18 in (45.72 cm) |
| Peso | 110 lbs (50 kg) |
| Potencia | 1/2 Horsepower |
| Tracción máxima del cable | NA |
