934 AUTODRAPE® Curtain Machine. 1/4 H.P.

https://www.sktheatricaldraperies.com/web/image/product.template/205/image_1920?unique=e7db17b

Bulto Completo:
Item #0024-001140

Este producto ya no está disponible.

Especificaciones del Producto


*** The manufacturer has discontinued this product ***

Consider using the 2904 SILVER SERVICE® Curtain Machine. 1/2 H.P.  as a substitute with increased torque and horsepower.


Draw machine designed to operate medium weight curtains. Machine includes a 10" diameter x 5" wide helical grooved cable drum grooved for 3/16 wire center cable, belt drive, integral rotary limit switches, magnetic-control-system (full-voltage), and can be operated from an unlimited number of remote control stations (push-button type). This machine is available in a horizontal and "flying" configuration at additional cost. When ordering a "flying" configuration the track model being used with the machine must be specified. Cable speed is 86 fpm fixed. Drum upgrade to 10" x 7" available.

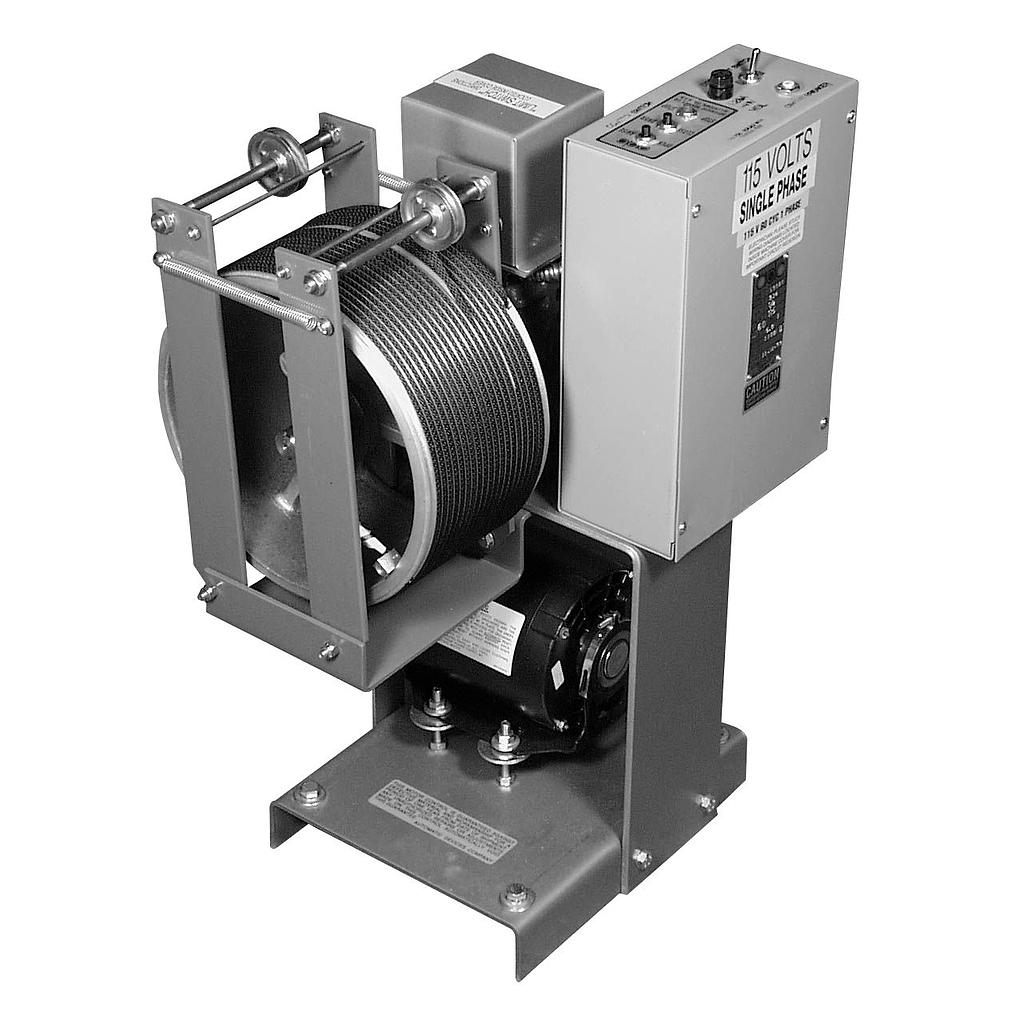

Note that the CTD-1 Cable Tension Device depicted in the photo is sold separately.
