2928 Silver Service In-Line Machine for 280 Track
| Product Specifications |
|---|
| Cable Speed: 90/45 fpm (2.30/1.15 mpm) |
| Control voltage: 24 VAC |
| Number of wires for remote control: 4 (plus ground) |
| Phase: 1 |
| Volts: 120V |
| Height: 18 in (45.72 cm) |
| Length: 18 in (45.72 cm) |
| Width: 18 in (45.72 cm) |
| Weight: 45 lbs (20 kg) |
| Machine Power: 1/2 Horsepower |
2928 Silver Service In-Line Machine. 1/2 H.P.

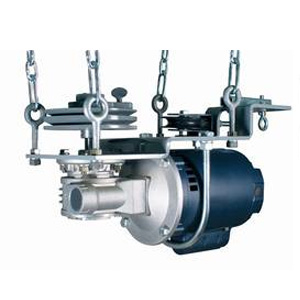

This machine is specifically designed to work with No. 280 Series tracks, and for projects requiring the curtain machine to be located off of the finished floor. This model machine is designed to attach to, and align with, the curtain track and be supported by an overhead structure via eye-bolts mounted to the machine’s base. The machine eliminates the vertical operating cables that normally run from a floor mounted machine to the track live-end pulley. The control box for this model machine is connected by 6' of BX cable to the machine. Control is stop/start/reverse from any point of travel.
2928 Silver Service In-Line Machine. 1/2 H.P.
Horsepower: 1/2
Volts: 120
Phase: 1
Cable speed: 90/45 fpm
Number of wires for remote control: 4 (plus ground)
Control voltage: 24 VAC
Approximate dimensions: 18"L x 18"W x 18"H
Approximate shipping weight: 45 lbs
