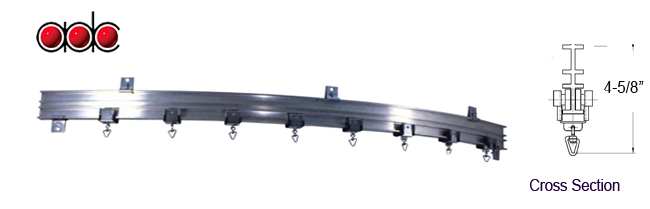

PATRIARC® 500R Series Track
ADC Model 500-R curtain track is identical to Model 500 curtain track except that No. 5001-A neoprene-tired Ball-Bearing Single Carriers are used in place of the standard nylon-tired No. 5001 single carriers.
ADC PATRIARC 500 series curtain track is ideal for heavy duty straight, curved and reverse-curved track systems. Used in very large and heavy curtain applications that require maximum strength hardware and operation of bi-parting and one-way draw curtains. This large aluminum I-Beam track can be reversed curved to create unusual and difficult bending designs that have been requested. Factory curved in most cases to a 2’ minimum radius. Equipped with ball bearing carriers, end pulleys and cable guides, Patriarc is one of the quietest tracks in the ADC curtain track line.
Curved curtain track systems are inherently more difficult to operate manually than are straight curtain track systems. While Patriarc tracks are available for manual applications, we suggest motorizing curved applications of the track. For hand operation use No. 2866 Adjustable Floor Pulley.
