CTD1 Cable Tension Device

Price Ranges
Full Bulk:
Item #0024-001615

508.92 508.92 USD 508.92


    This combination does not exist.

    1 yard(s)
    914.99 meter(s)
    Minimum Purchase Required: 1 Unit(s)
    Do you have questions about this product?
    Contactus for answers.

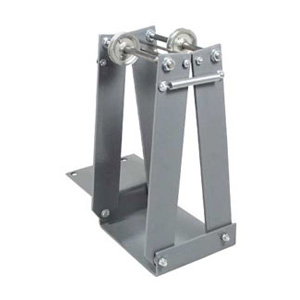

    CTD1 Cable Tension Device

    CTD-1 is designed for draw curtain machines equipped with 5" x 10" drums or 7" x 10" drums. Cable tension devices help reduce cable slack on motorized track systems. They also act as cable guides by maintaining the operating cable within the grooves of the cable drum. A Cable Tension Device can be used with most ADC machines and is strongly recommended for use with all motorized curved tracks. When a CTD is furnished as part of a machine, an emergency hand crank is not supplied. Any motor control purchased simultaneously with a Model 500 PATRIARC includes, at no extra charge, a Cable Tension Device. For all other applications it must be ordered. Models 2905, 6505 and 7005 are equipped with cable tension devices as standard equipment.
