2950 Silver Service In-Line Machine for 500 Track

https://www.sktheatricaldraperies.com/web/image/product.template/337/image_1920?unique=59667ef
Price Ranges
$5510.65 - $5630.94
Full Bulk:
Item #0024-001584

5,630.94 5630.9400000000005 USD 5,630.94

0.00

  • Velocidad del cable
  • Voltage del controlador
  • Número de conductores por control remoto
  • Fases
  • Voltios
  • Alto
  • Largo
  • Ancho
  • Peso
  • Mounting Spec
  • Potencia

Esta combinación no existe.

Minimum Purchase Required: 1 Unidad(es)

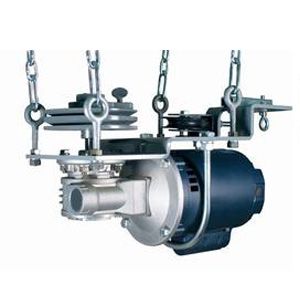

2950 Silver Service In-Line Machine. 1/2 H.P.

This machine is specifically designed to work with No. 500 Series tracks, and for projects requiring the curtain machine to be located off of the finished floor. This model machine is designed to attach to, and align with, the curtain track and be supported by an overhead structure via eye-bolts mounted to the machine’s base. The machine eliminates the vertical operating cables that normally run from a floor mounted machine to the track live-end pulley. The control box for this model machine is connected by 6' of BX cable to the machine. Control is stop/start/reverse from any point of travel.

Machine can be equipped with friction brakes at additional cost.

These machines are not to be used for the lifting, supporting, or transporting of people. These machines should not be used to move objects over areas where people are present unless suitable safety devices are installed.

Inline machines utilize track mounted direct strike limit switches to signal the fully open and fully closed positions of the curtains. You received 2 track mounted limits with their roller yokes attached in the correct orientation. You should not have to move the roller yokes of the limit switches.

2950 Silver Service In-Line Machine. 1/2 H.P.

Horsepower: 1/2

Volts: 120

Phase: 1

Cable speed: 90/45 fpm

Number of wires for remote control: 4 (plus ground)

Control voltage: 24 VAC

Approximate dimensions: 18"L x 18"W x 18"H

Approximate shipping weight: 45 lbs .

Odoo text and image block

Especificaciones

Mounting Spec Suspended - Ceiling mount
Velocidad del cable 90/45 fpm (2.30/1.15 mpm)
Voltage del controlador 24 VAC
Número de conductores por control remoto 4 (plus ground)
Fases 1
Voltios 120V
Alto 18 in (45.72 cm)
Largo 18 in (45.72 cm)
Ancho 18 in (45.72 cm)
Peso 45 lbs (20 kg)
Potencia 1/2 Horsepower
