Mega-Track Hanger, Long

https://www.sktheatricaldraperies.com/web/image/product.template/151/image_1920?unique=c9b38b2
Rango de precios
$26.74 - $30.28
Bulto Completo:
Item #104674

26.74 26.740000000000002 USD 26.74

0.00

  • Material
  • Acabado
  • Peso
  • Kit

Esta combinación no existe.

1 yarda(s)
metro(s)
Mínimo de compra: 1 Unidad(es)
Especificaciones del Producto
Material: Steel - Aluminum
Peso: 1 lb
Kit: Gridlock half - track hanger - fasteners
ver más... ver menos...

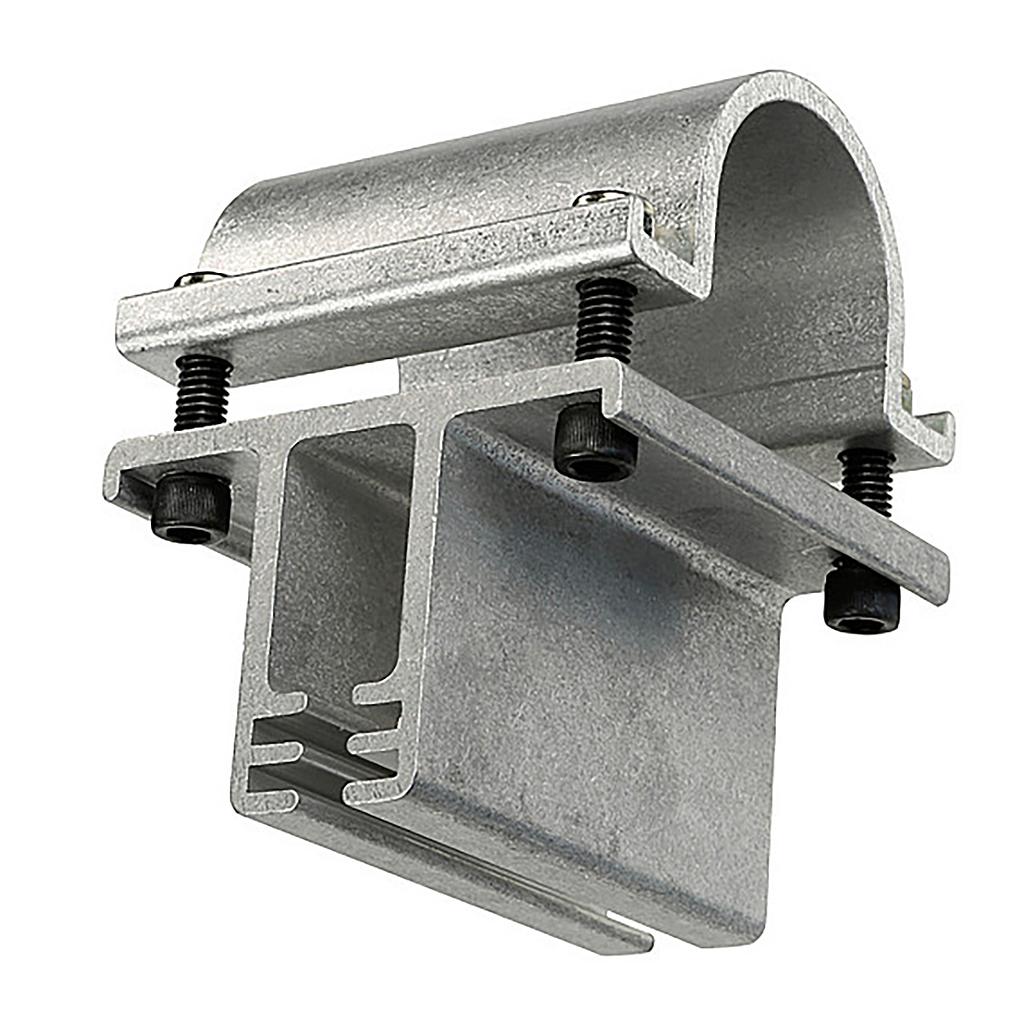

MTLM Mega-Track Hanger, Long

The Mega-Track Hanger makes it easy to hang 140 or 300 series track onto pipe grids, or from individual pipes.

The Mega-Track Hanger Long hangs from the upper pipe of the grid and has an offset length from the track to the pipe the diameter of the bottom grid pipe plus 3/16 of an inch. The Mega-Track hanger Long has two different track hanging slots so that it will work with either 1-1/2" or 1-1/4" schedule 40 pipe grids. Both of the Mega-Track Hangers use a Mega-Gridlock half to fasten over the pipe and secure from below with four 5/16" socket head screws. The Mega-Gridlock half has slots along the edge that act like a wrench to hold the four Nylock nuts from turning during installation. Only a slight downward pressure with your fingers is required to hold a nut in place for installation. The track hanger slides over the track prior to placing the track in position. Support track approximately every 4 feet.

Safe Vertical Working Load: 300 Pounds

Hardware: 4 each 5/16" × 2" socket head Cap Screws and Nylock Nuts

Dimensions: 3.65 × 3.65 inches

Weight: 1 Lb

There are two versions of the Mega-Track Hanger, and the alternate Mega-Track Hanger Short hangs from the lower pipe of the grid and secures the track just 3/16 of an inch below the grid pipe.
